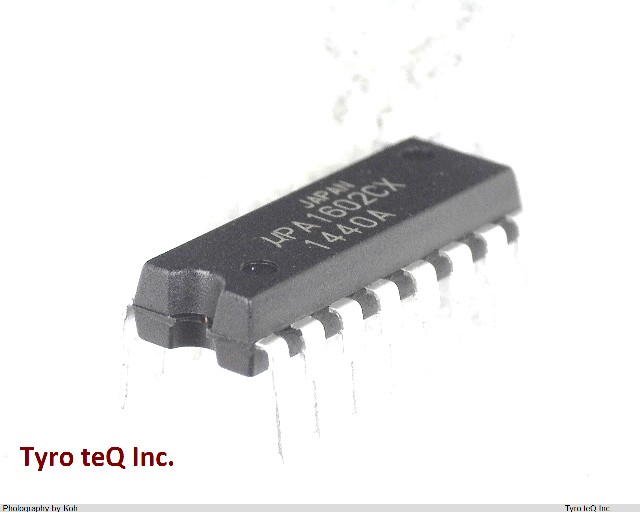

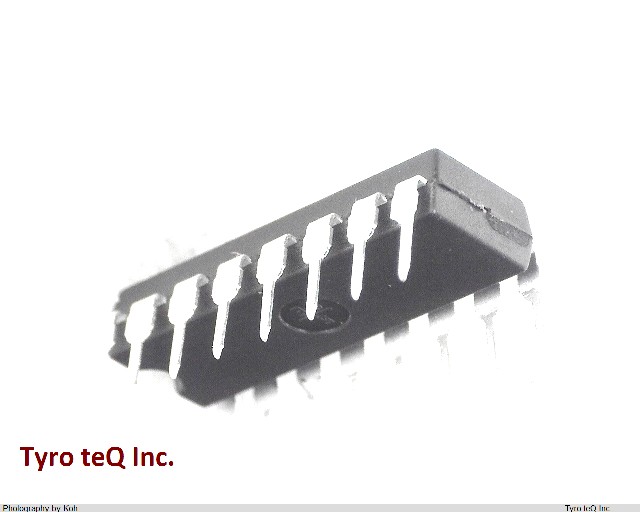

UPA1602CX-A データシート

Name: UPA1602CX-A
Brand: RENESAS
SKU: 310095251-0000-0000-0000

UPA1602CX-A - RENESAS の商品詳細ページです。

168時間47分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

UPA1602CX-A の詳細情報

型番	UPA1602CX-A
メーカー	RENESAS
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	7
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e6
Number of Functions	7
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SINK
Output Current-Max	0.27 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	7.62 mm
