406372-2 データシート

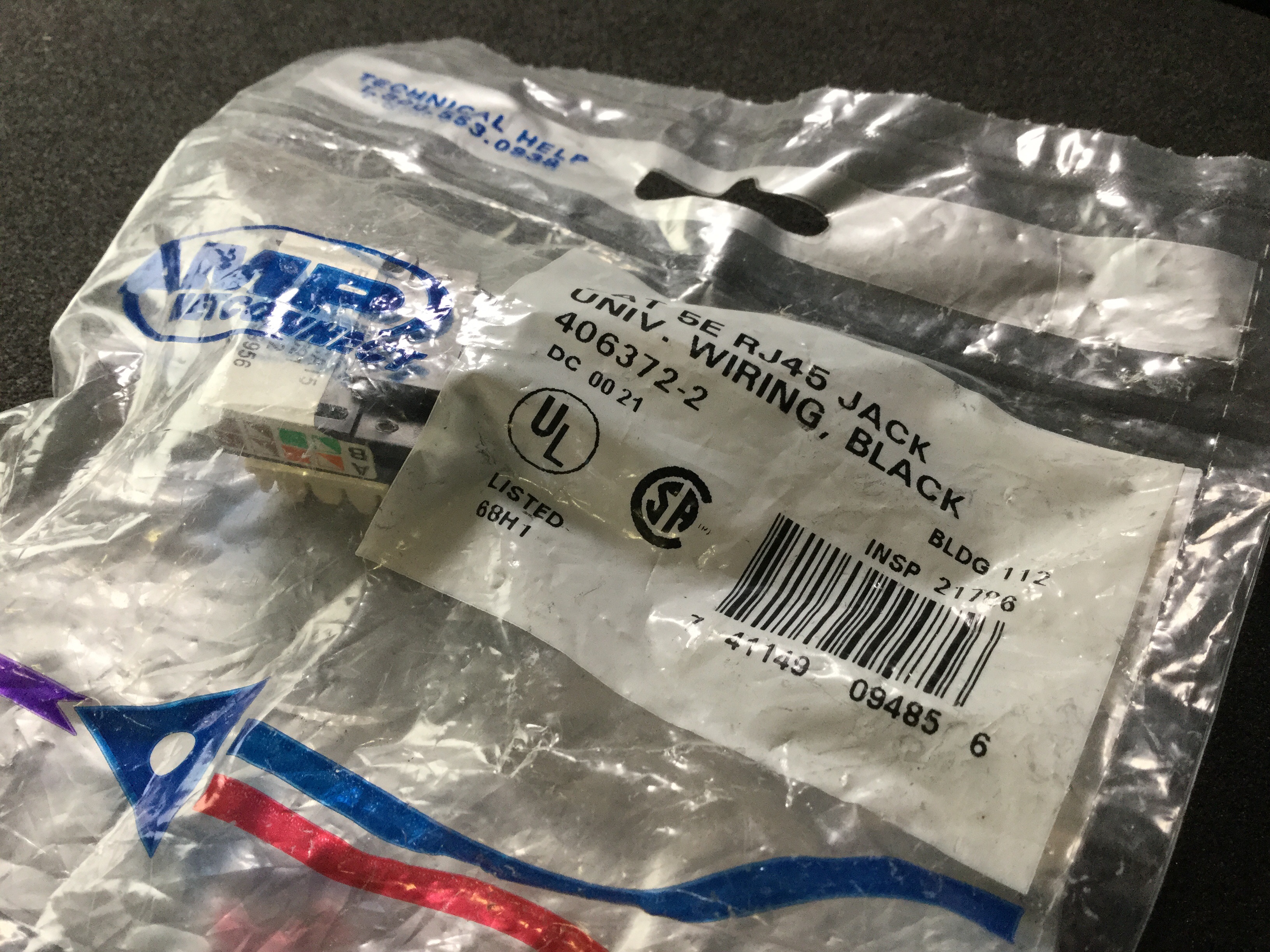

Name: 406372-2
Brand: AMP
SKU: 50120187-0000-0000-0000

406372-2 - AMP の商品詳細ページです。

２営業日以内に回答いたします

406372-2 の詳細情報

型番	406372-2
メーカー	AMP
データシート
Additional Feature	TERMINATION DONE USING PUNCH DOWN TOOL
Body Breadth	0.81 inch
Body Depth	1.215 inch
Body Length	0.9 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD (50) OVER NICKEL
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	750 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYPHENYLENE OXIDE
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	CABLE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Plating Thickness	50u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1.5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Sub Category	Telecom and Datacom Connectors
Termination Type	SOLDERLESS
Total Number of Contacts	8
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	26 AWG
