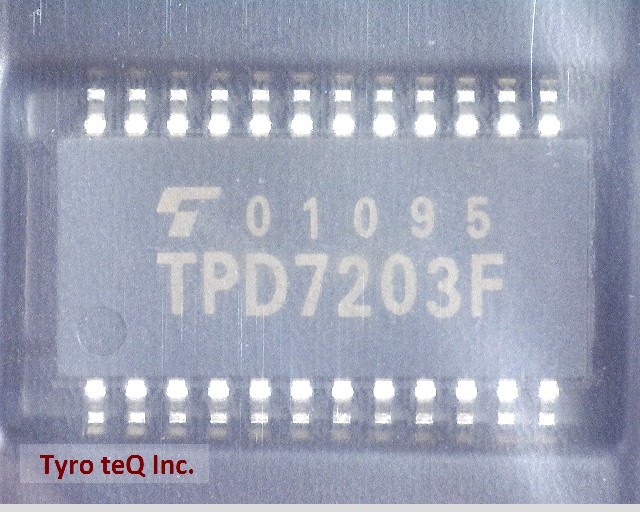

TPD7203F データシート

Name: TPD7203F
Brand: TOSHIBA
SKU: 300030914-0000-0000-0000

TPD7203F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | インテリジェントパワーデバイス

TPD7203F の詳細情報

型番	TPD7203F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Analog IC - Other Type	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	13 mm
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	7 V
Supply Voltage-Nom (Vsup)	13.5 V
Surface Mount	YES
Technology	MOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6 mm
