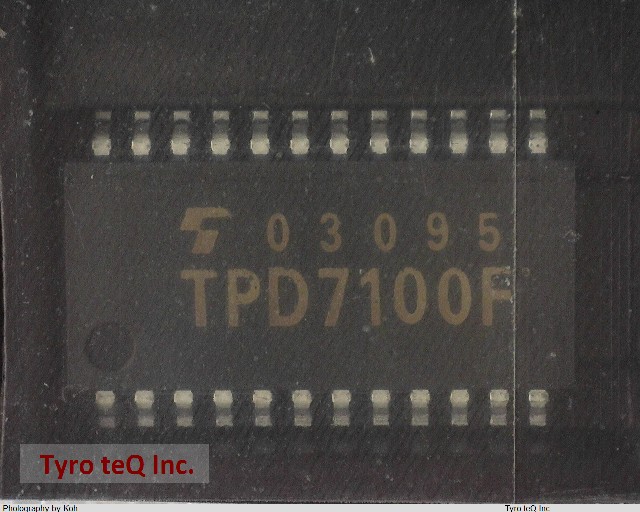

TPD7100F データシート

Name: TPD7100F
Brand: TOSHIBA
SKU: 300261528-0000-0000-0000

TPD7100F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | インテリジェントパワーデバイス

TPD7100F の詳細情報

型番	TPD7100F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
High Side Driver	YES
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	13 mm
Number of Functions	2
Number of Terminals	24
Operating Temperature-Max	110 Cel
Operating Temperature-Min	-40 Cel
Output Peak Current Limit-Nom	0.1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.3,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	8/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	MOSFET Drivers
Surface Mount	YES
Technology	MOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	5 us
Turn-on Time	5 us
Width	6 mm
