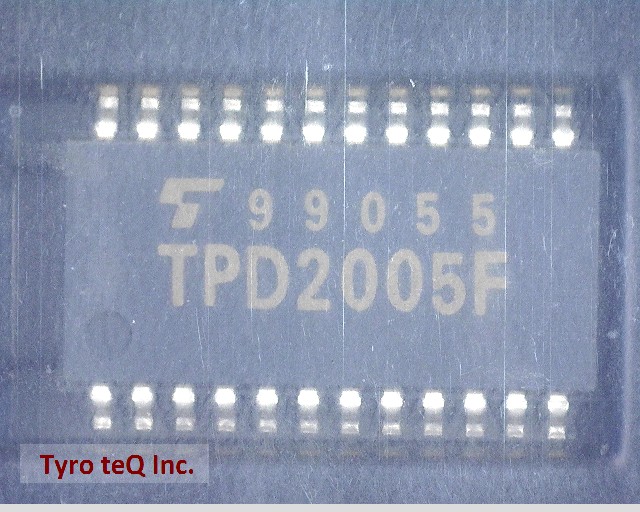

TPD2005F データシート

Name: TPD2005F
Brand: TOSHIBA
SKU: 300030899-0000-0000-0000

TPD2005F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | インテリジェントパワーデバイス

TPD2005F の詳細情報

型番	TPD2005F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT; OVER CURRENT; THERMAL
Driver Number of Bits	8
IO (Max) (A)	8
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G24
Length	13 mm
Number of Functions	8
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SINK
Output Current-Max	0.005 A
Output Peak Current Limit-Nom	1 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SOP24,.3,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	8/40 V
Qualification Status	Not Qualified
RDS(ON) (Max) (ohm)	1.2
Seated Height-Max	1.9 mm
Sub Category	Peripheral Drivers
Supply Current-Max	5 mA
Supply Voltage-Max	40 V
Supply Voltage-Min	8 V
Supply Voltage-Nom	12 V
Surface Mount	YES
Technology	MOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Topr (Max) (degC)	85
Topr (Min) (degC)	-40
Turn-off Time	50 us
Turn-on Time	200 us
VDD (Max) (V)	45
VDS (Max) (V)
VDSS (Max) (V)
Width	6 mm
ピン数	24
回路数	8
面実装区分	Y
