TPD1044F データシート

Name: TPD1044F
Brand: TOSHIBA
SKU: 300360505-0000-0000-0000

TPD1044F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | インテリジェントパワーデバイス

TPD1044F の詳細情報

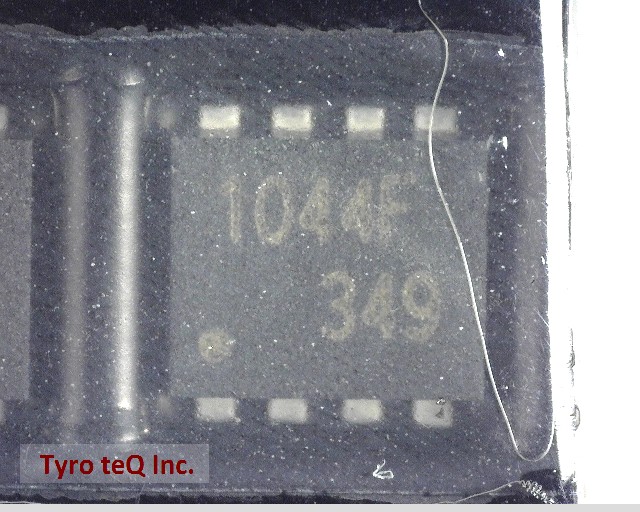

型番	TPD1044F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Driver Number of Bits	1
IO (Max) (A)	1
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-F8
Length	2.9 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SINK
Package Body Material	PLASTIC/EPOXY
Package Code	VSOF
Package Equivalence Code	FL8,.1,25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	13 V
Qualification Status	Not Qualified
RDS(ON) (Max) (ohm)	0.6
Seated Height-Max	0.85 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Form	FLAT
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Topr (Max) (degC)	125
Topr (Min) (degC)	-40
VDD (Max) (V)
VDS (Max) (V)	41
VDSS (Max) (V)
Width	2.4 mm
ピン数	8
回路数	1
面実装区分	Y
