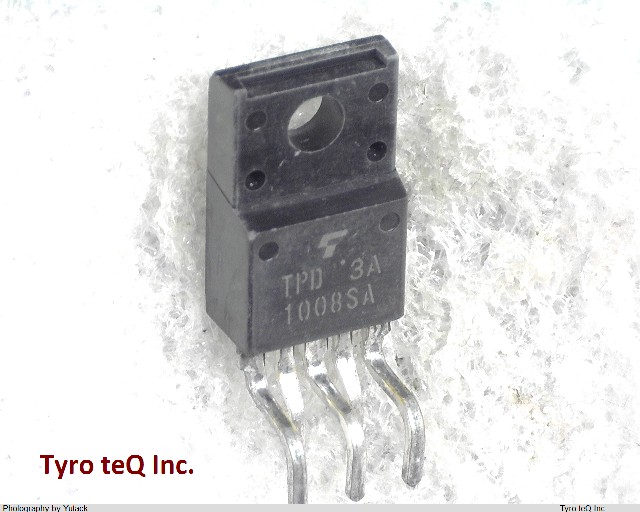

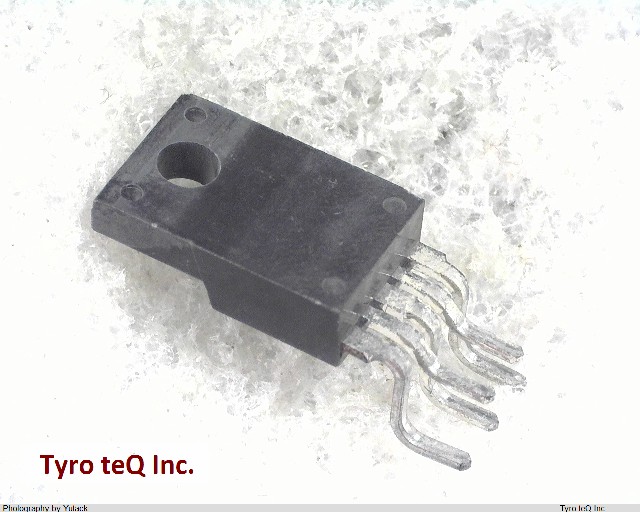

TPD1008SA(LBF) データシート

Name: TPD1008SA(LBF)
Brand: TOSHIBA
SKU: 300394200-0000-0000-0000

TPD1008SA(LBF) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | インテリジェントパワーデバイス

TPD1008SA(LBF) の詳細情報

型番	TPD1008SA(LBF)
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	OVER CURRENT; THERMAL
Driver Number of Bits	1
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PZFM-T5
JESD-609 Code	e0
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	110 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-SOURCE
Output Current Flow Direction	SOURCE
Output Current-Max	2 A
Output Peak Current Limit-Nom	8 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP5,.15,.2,67TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Power Supplies	12 V
Qualification Status	Not Qualified
Sub Category	Peripheral Drivers
Supply Voltage-Max	18 V
Supply Voltage-Min	5 V
Supply Voltage-Nom	12 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.7 mm
Terminal Position	ZIG-ZAG
