TMPZ84C30AP-8 データシート

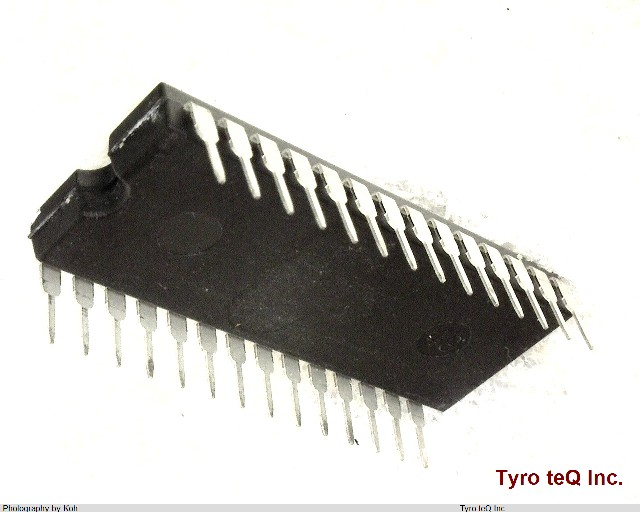

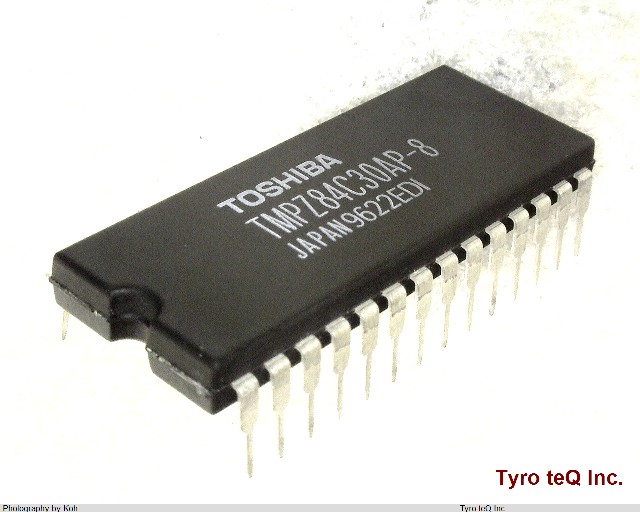

Name: TMPZ84C30AP-8
Brand: TOSHIBA
SKU: 300029222-0000-0000-0000

TMPZ84C30AP-8 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMPZ84C30AP-8 の詳細情報

型番	TMPZ84C30AP-8
メーカー	TOSHIBA
データシート
Additional Feature	DAISY CHAIN INTERRUPT STRUCTURE; PRESCALED /16, /256 TIMER I/P'S; SELECTABLE TIMER, COUNTER MODES
Bus Compatibility	Z80
Clock Frequency-Max	8 MHz
External Data Bus Width	8
Information Access Method	PARALLEL, DIRECT ADDRESS
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37 mm
Number of Bits	8
Number of Terminals	28
Number of Timers	4
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.3 mm
Supply Current-Max	10 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	TIMER, PROGRAMMABLE
