TMPZ84C112AN-6 データシート

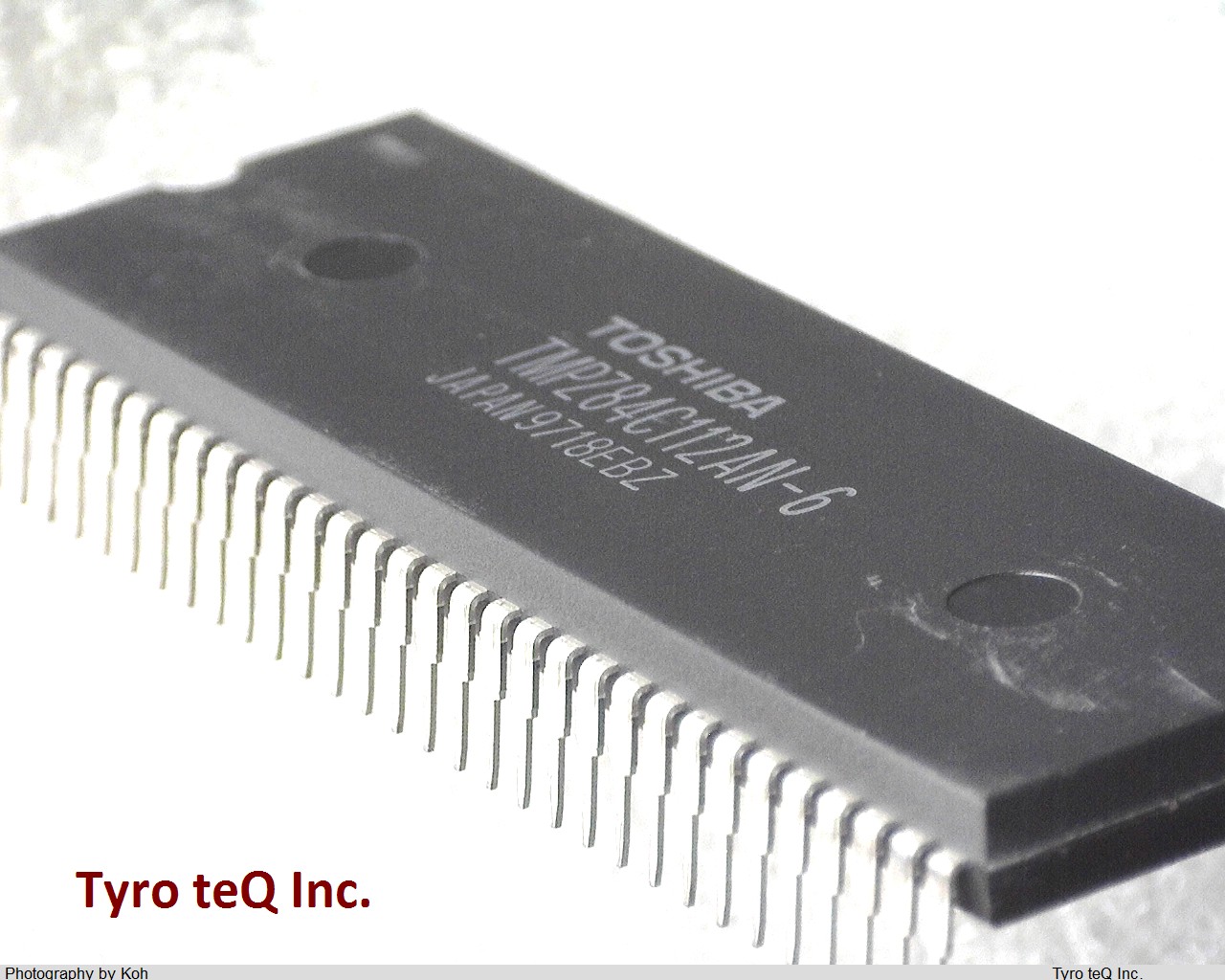

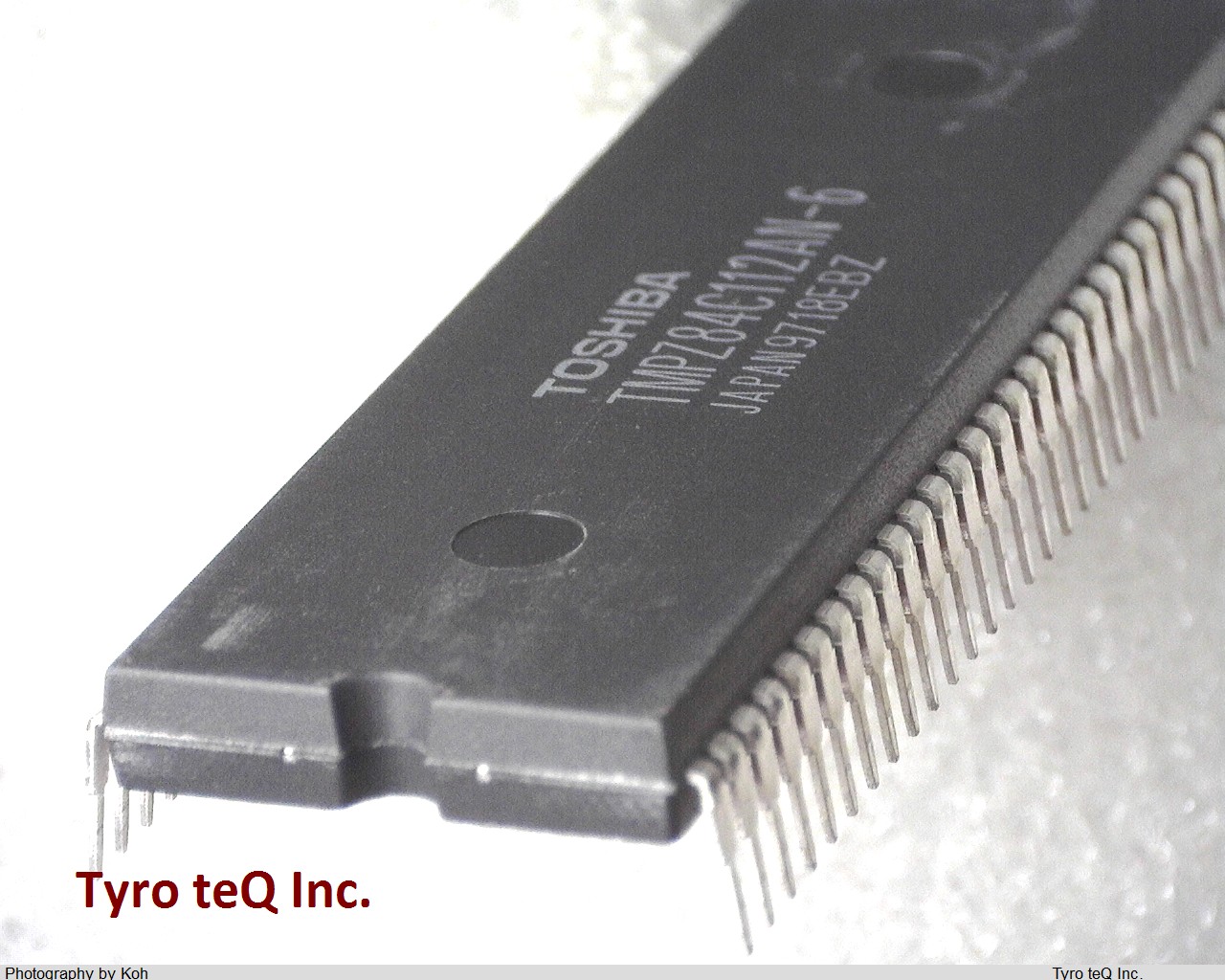

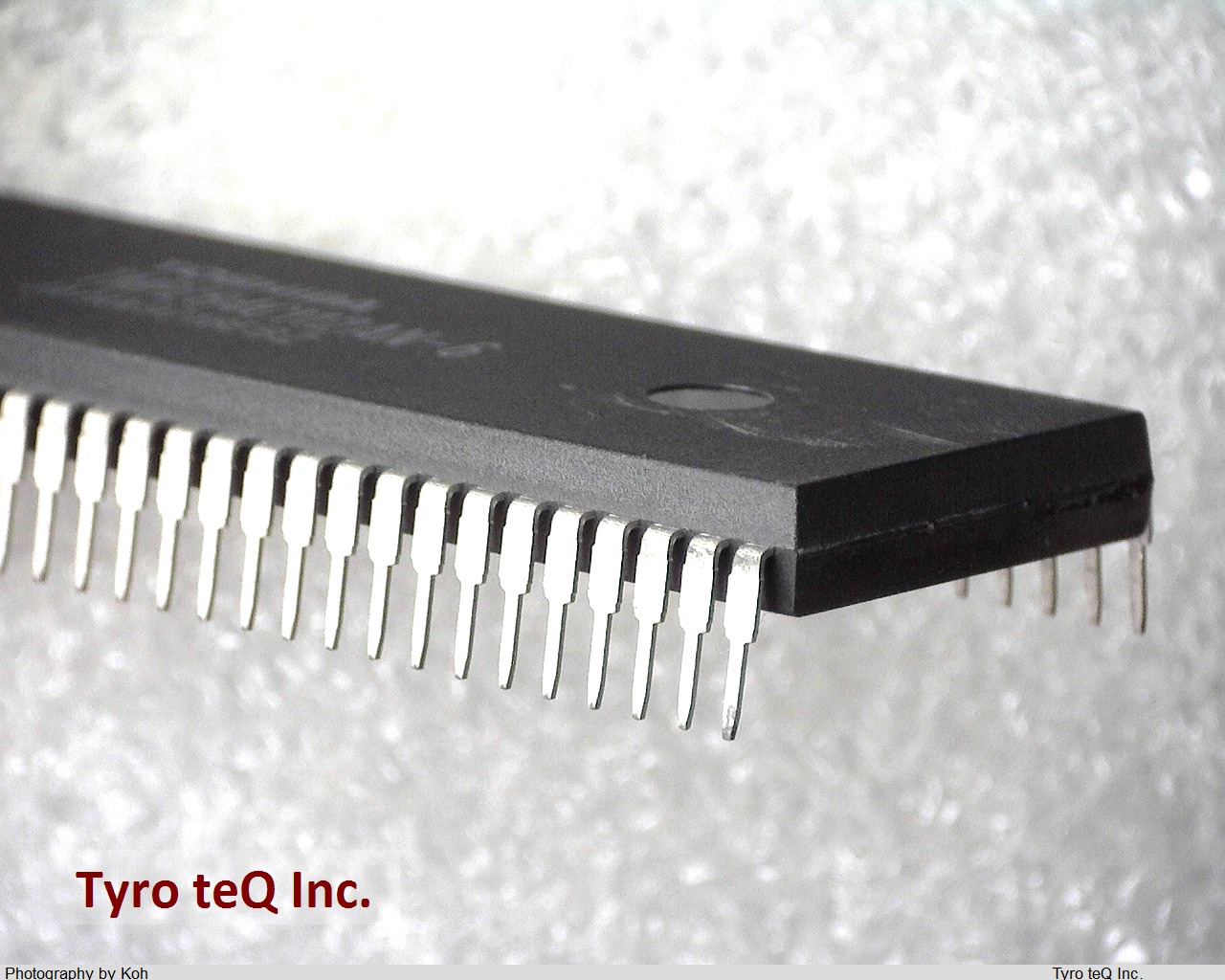

Name: TMPZ84C112AN-6
Brand: TOSHIBA
SKU: 300029215-0000-0000-0000

TMPZ84C112AN-6 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMPZ84C112AN-6 の詳細情報

型番	TMPZ84C112AN-6
メーカー	TOSHIBA
データシート
ADC Channels	NO
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	6.144 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T64
Length	57.5 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	2
Number of I/O Lines	24
Number of Serial I/Os	0
Number of Terminals	64
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-10 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
RAM (words)	256
Seated Height-Max	5 mm
Speed	6.144 rpm
Supply Current-Max	25 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Width	19.05 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
