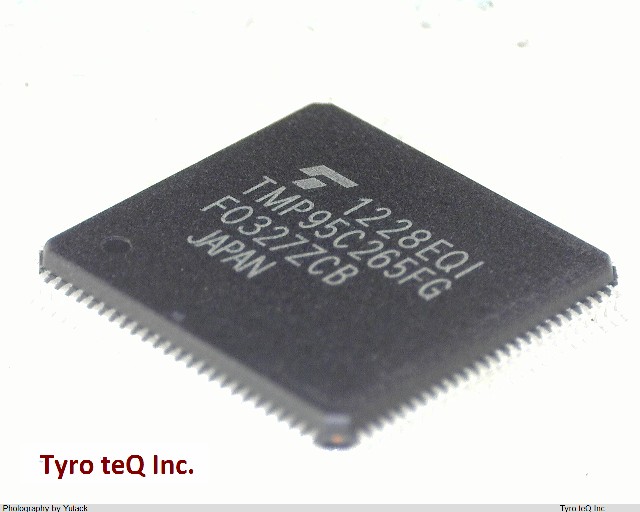

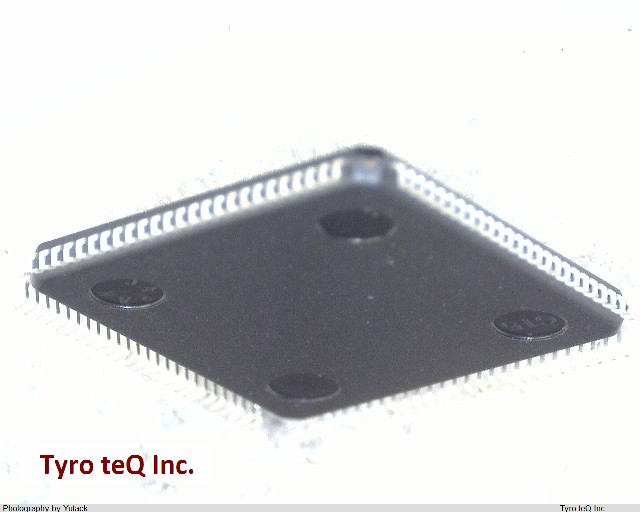

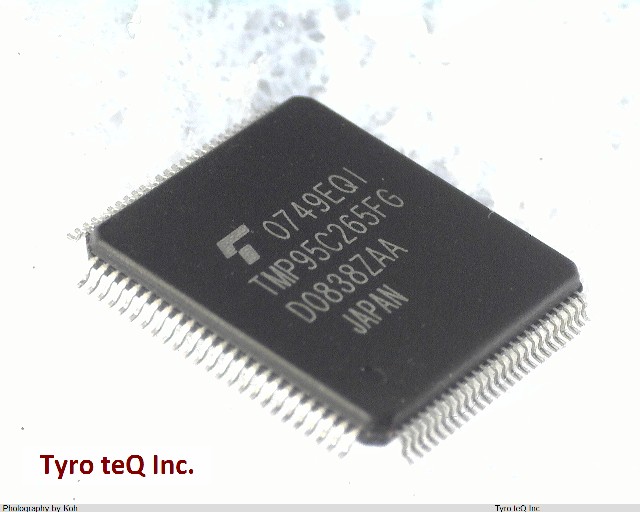

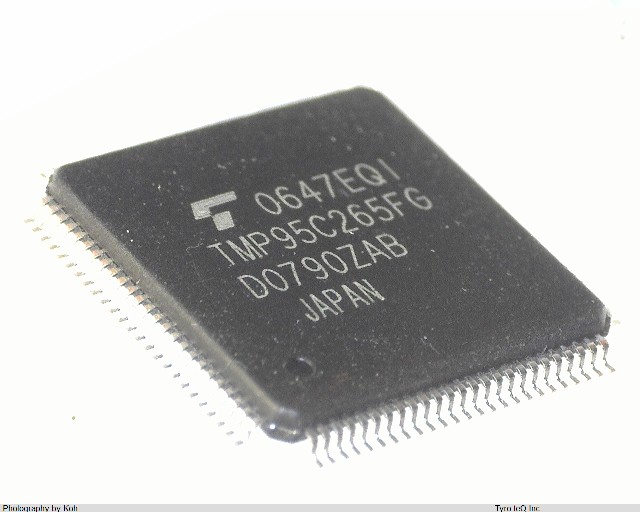

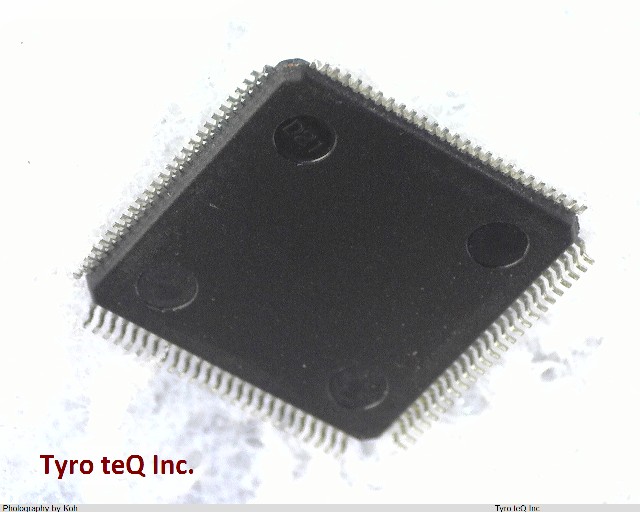

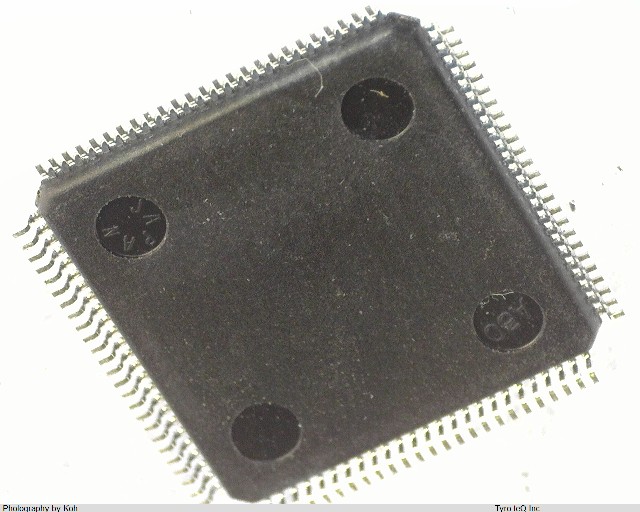

TMP95C265FG データシート

Name: TMP95C265FG
Brand: TOSHIBA
SKU: 300005813-0000-0000-0000

TMP95C265FG - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP95C265FG の詳細情報

型番	TMP95C265FG
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 10 MHZ
Address Bus Width	24
Bit Size	16
CPU Family	TLCS-900/H
Clock Frequency-Max	25 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
Length	14 mm
Number of I/O Lines	55
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	2048
Seated Height-Max	1.6 mm
Speed	25 rpm
Sub Category	Microcontrollers
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
