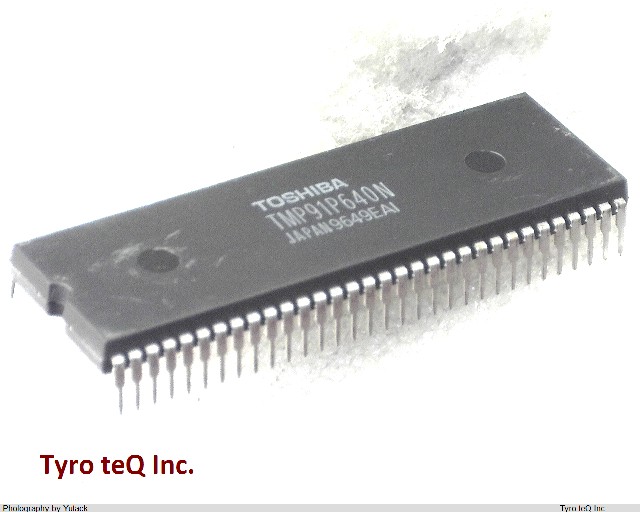

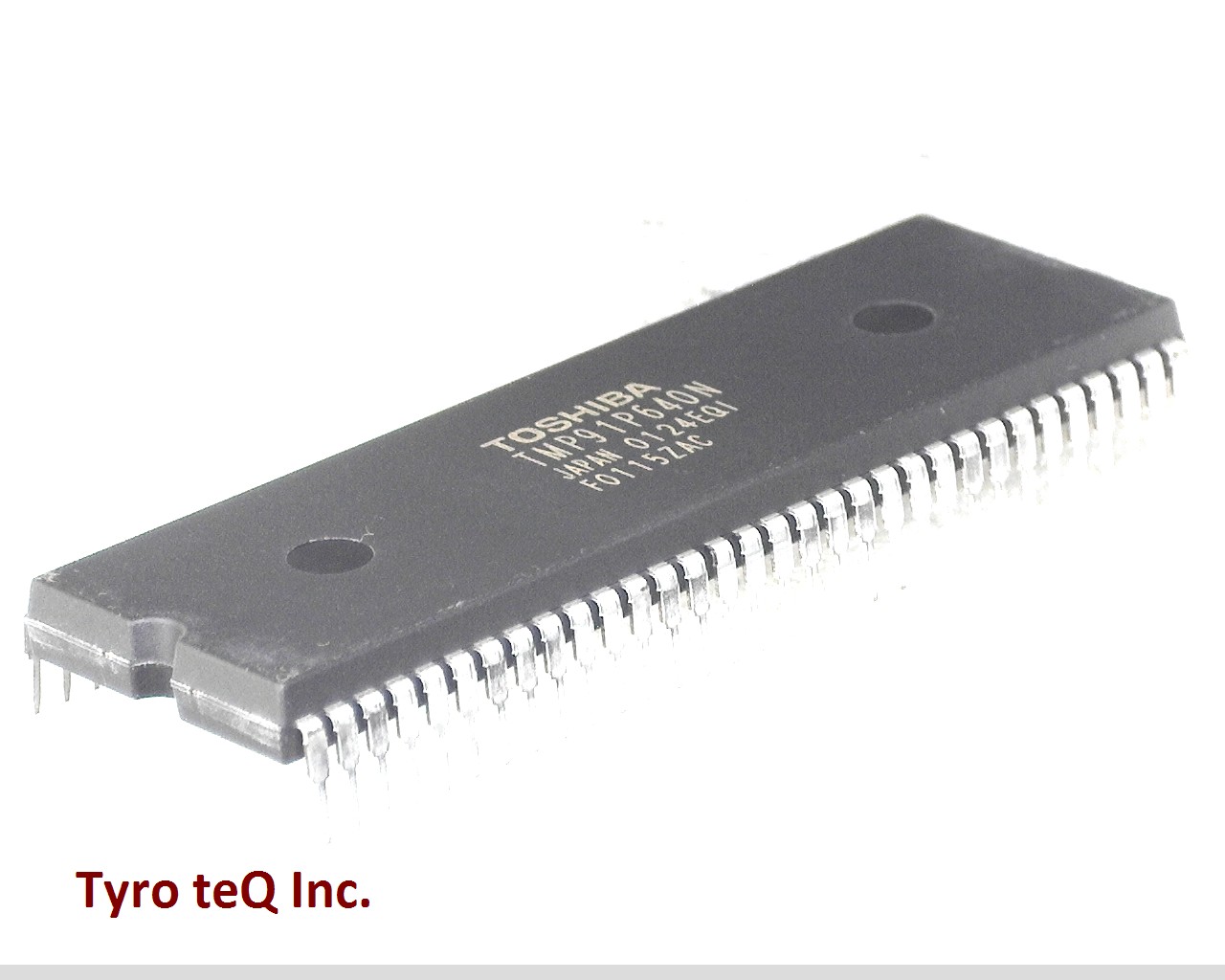

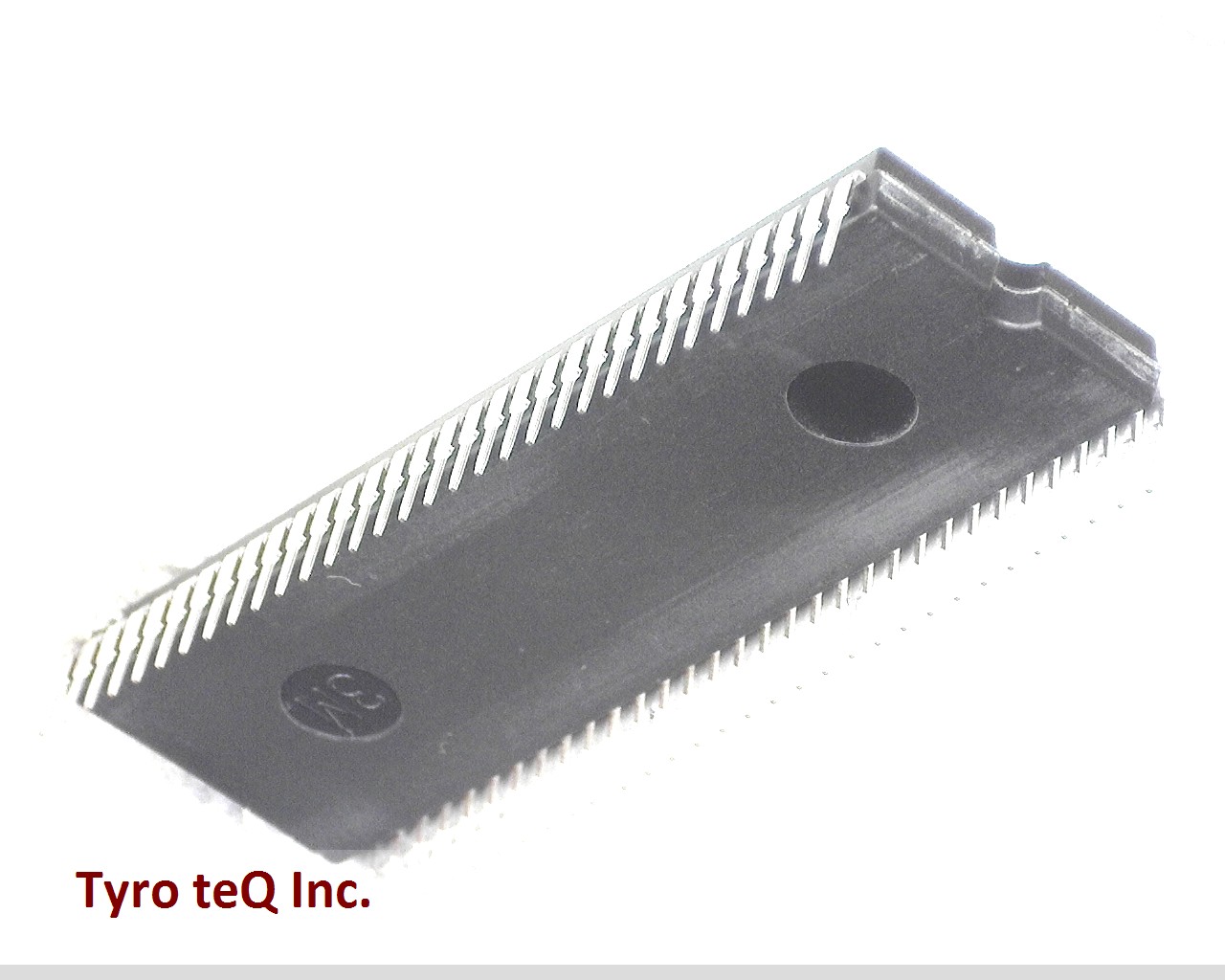

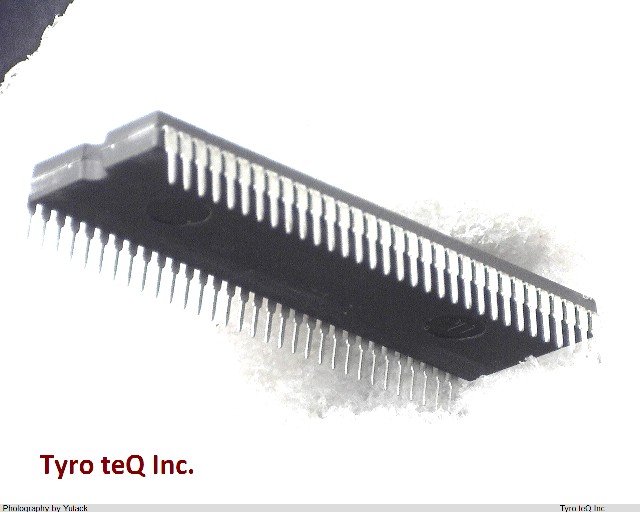

TMP91P640N データシート

Name: TMP91P640N
Brand: TOSHIBA
SKU: 300383752-0000-0000-0000

TMP91P640N - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP91P640N の詳細情報

型番	TMP91P640N
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
ADC Channels	YES
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	TLCS-90
Clock Frequency-Max	10 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e0
Length	57.5 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	4
Number of I/O Lines	54
Number of Serial I/Os	2
Number of Terminals	64
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP64,.75
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	512
RAM (words)	512
ROM (words)	16384
ROM Programmability	OTPROM
Seated Height-Max	5 mm
Speed	12.5 rpm
Supply Current-Max	40 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
