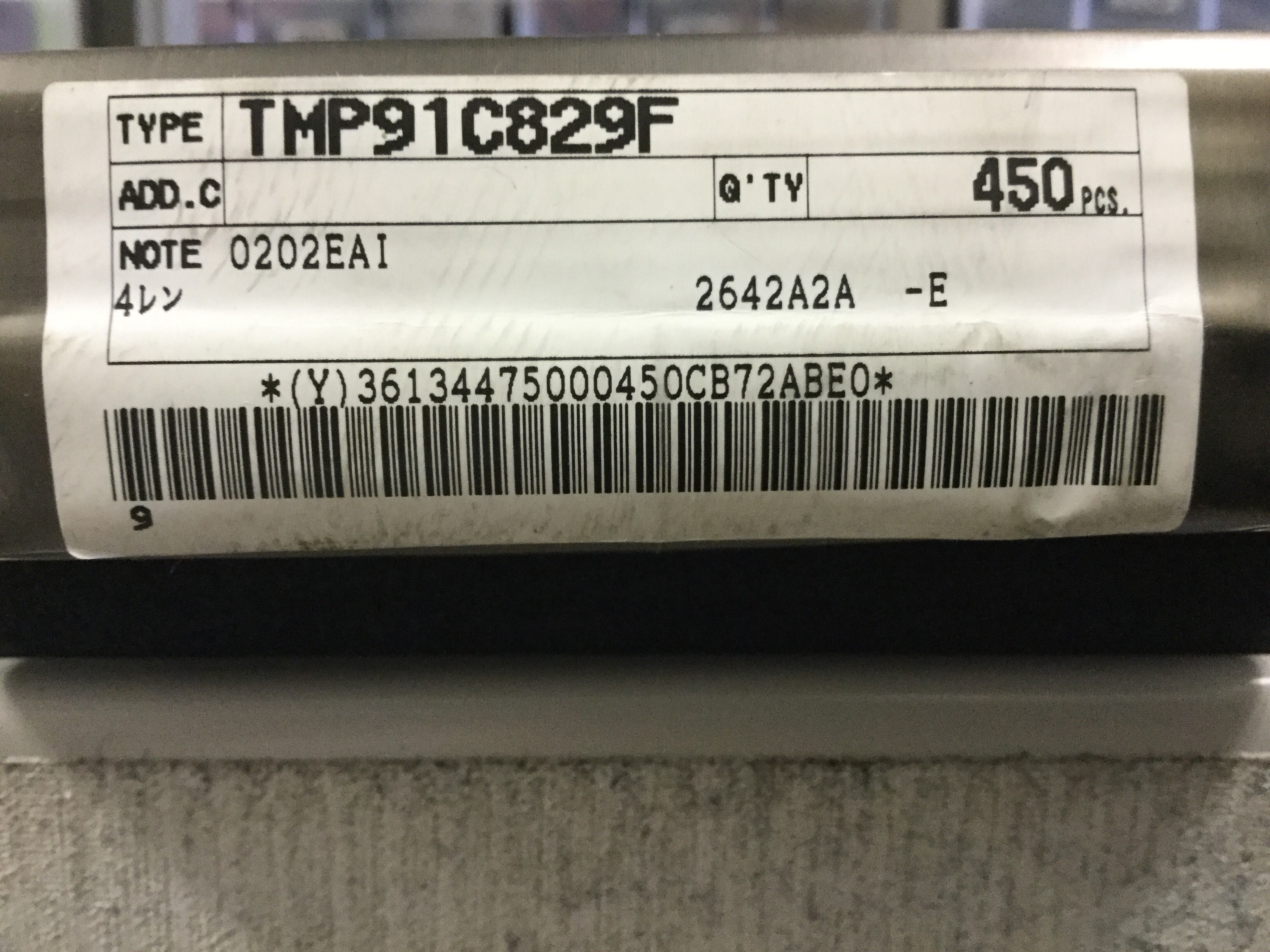

TMP91C829F データシート

Name: TMP91C829F
Brand: TOSHIBA
SKU: 300029065-0000-0000-0000

TMP91C829F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP91C829F の詳細情報

型番	TMP91C829F
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 5V SUPPLY
Address Bus Width	16
Bit Size	16
CPU Family	TLCS-900/L
Clock Frequency-Max	36 MHz
DAC Channels	NO
DMA Channels	YES
External Data Bus Width	8
JESD-30 Code	S-PQFP-G100
Length	14 mm
Number of I/O Lines	53
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3,5 V
Qualification Status	Not Qualified
RAM (bytes)	8192
ROM Programmability	MROM
Seated Height-Max	1.6 mm
Speed	36 rpm
Sub Category	Microcontrollers
Supply Current-Max	40 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
