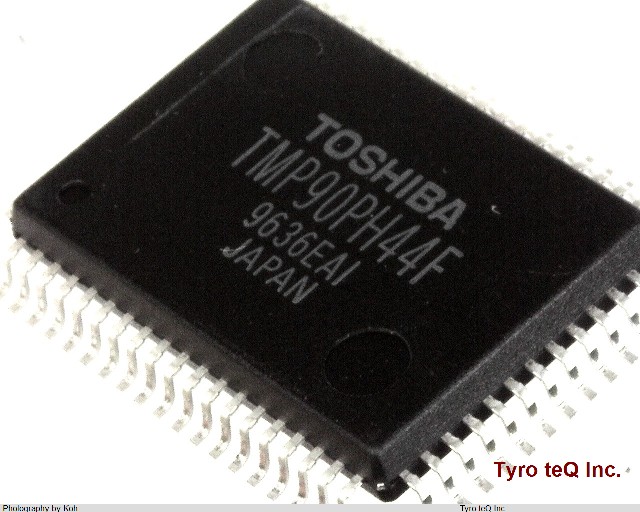

TMP90PH44F データシート

Name: TMP90PH44F
Brand: TOSHIBA
SKU: 300385946-0000-0000-0000

TMP90PH44F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP90PH44F の詳細情報

型番	TMP90PH44F
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
ADC Channels	YES
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	16 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PQFP-G64
JESD-609 Code	e0
Length	20 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	3
Number of I/O Lines	54
Number of Serial I/Os	1
Number of Terminals	64
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RAM (words)	512
ROM (words)	16384
ROM Programmability	OTPROM
Seated Height-Max	3.05 mm
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
