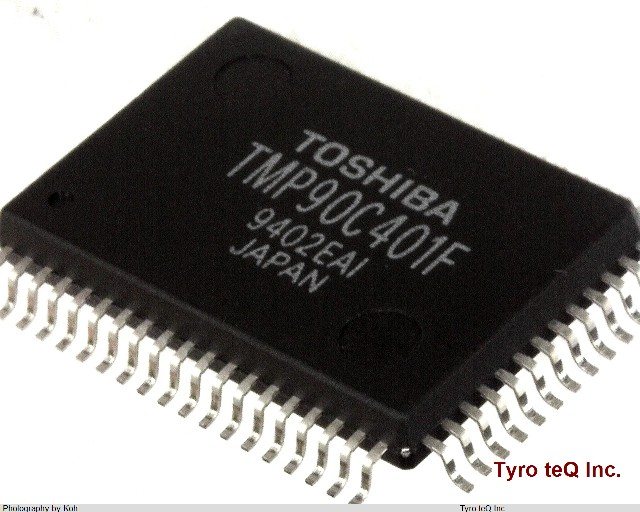

TMP90C401F

Name: TMP90C401F
Brand: TOSHIBA
SKU: 400062001-0000-0000-0000

TMP90C401F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP90C401F の詳細情報

型番	TMP90C401F
メーカー	TOSHIBA
種別	マイクロコンピュータ
ADC Channels	NO
Additional Feature	FMAX = 10MHZ @ TA =-40 TO 85 DEG C
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	12.5 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PQFP-G64
Length	20 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	3
Number of I/O Lines	56
Number of Serial I/Os	1
Number of Terminals	64
Number of Timers	2
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RAM (words)	128
Seated Height-Max	3.05 mm
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
