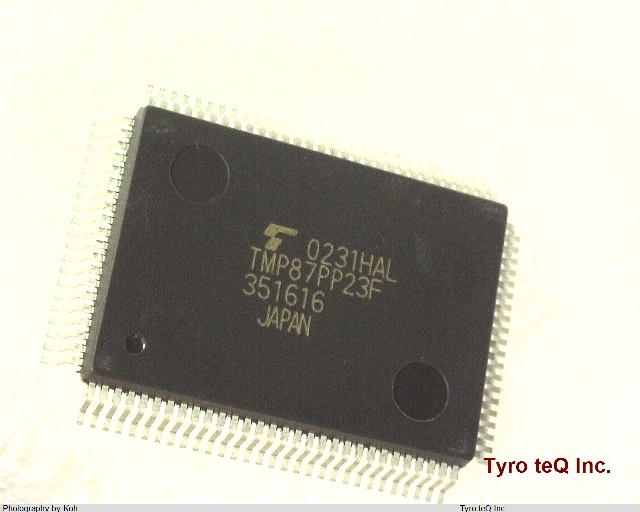

TMP87PP23F データシート

Name: TMP87PP23F
Brand: TOSHIBA
SKU: 300028945-0000-0000-0000

TMP87PP23F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP87PP23F の詳細情報

型番	TMP87PP23F
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	OPERATES AT 2.7V MIN SUPPLY @ 4.2 MHZ
Address Bus Width	0
Bit Size	8
CPU Family	TLCS-870
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PQFP-G100
Length	20 mm
Number of I/O Lines	70
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-30 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP100,.7X.9
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	2048
ROM (words)	49152
ROM Programmability	OTPROM
Seated Height-Max	3.05 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	16 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
