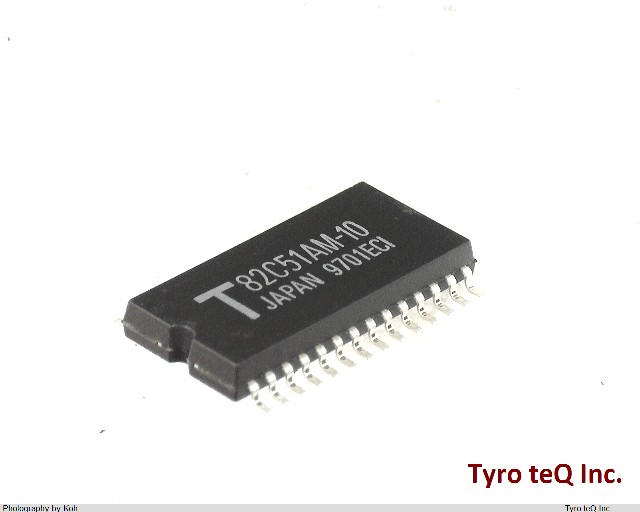

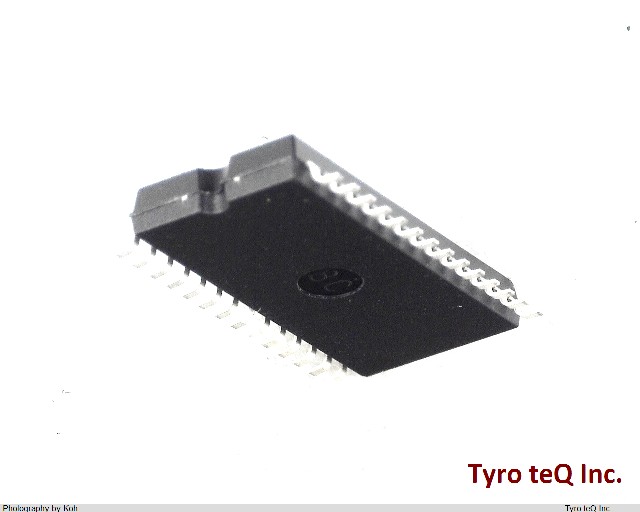

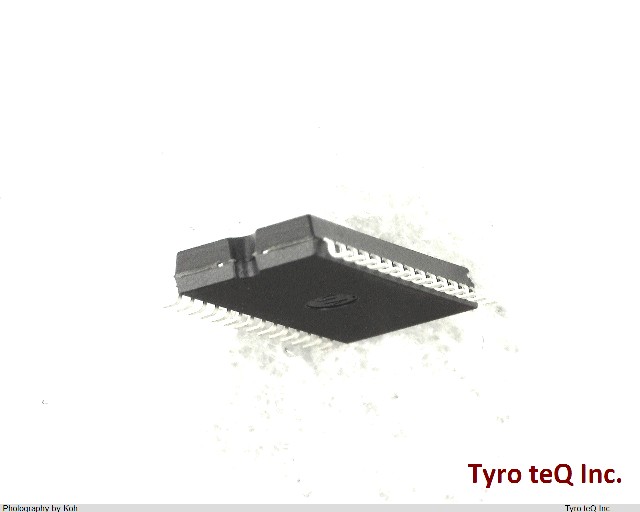

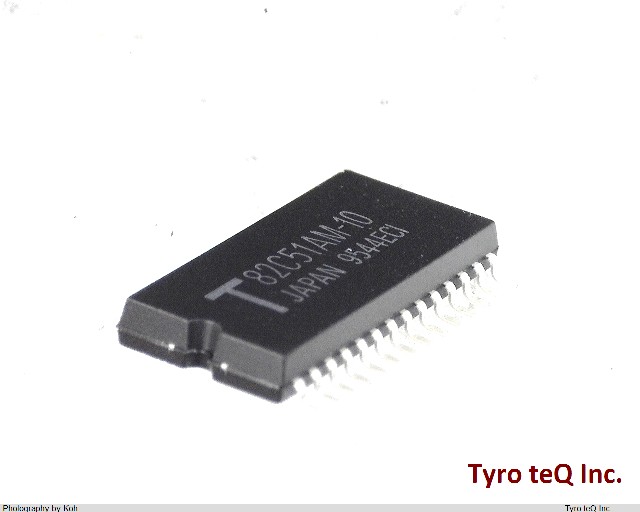

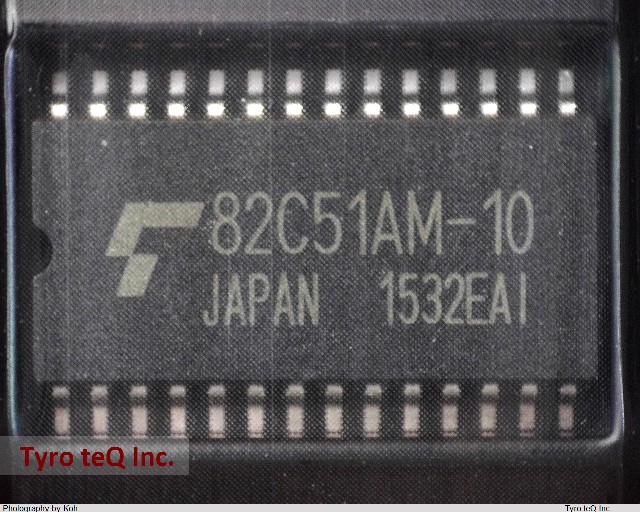

TMP82C51AM-10 データシート

Name: TMP82C51AM-10
Brand: TOSHIBA
SKU: 300013519-0000-0000-0000

TMP82C51AM-10 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP82C51AM-10 の詳細情報

型番	TMP82C51AM-10
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
Additional Feature	MODEM CONTROL CAPABILITY
Address Bus Width	1
Boundary Scan	NO
Clock Frequency-Max	10 MHz
Communication Protocol	ASYNC, BIT; SYNC, BYTE
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.03662109375 MBps
External Data Bus Width	8
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	18.5 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	28
On Chip Data RAM Width	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	2.7 mm
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	8.8 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
