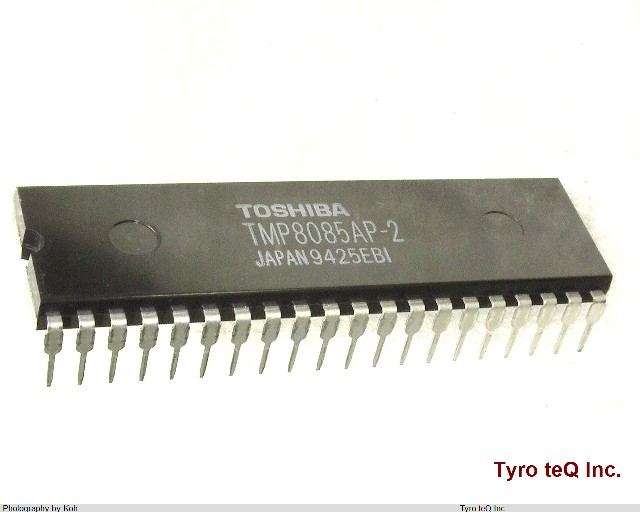

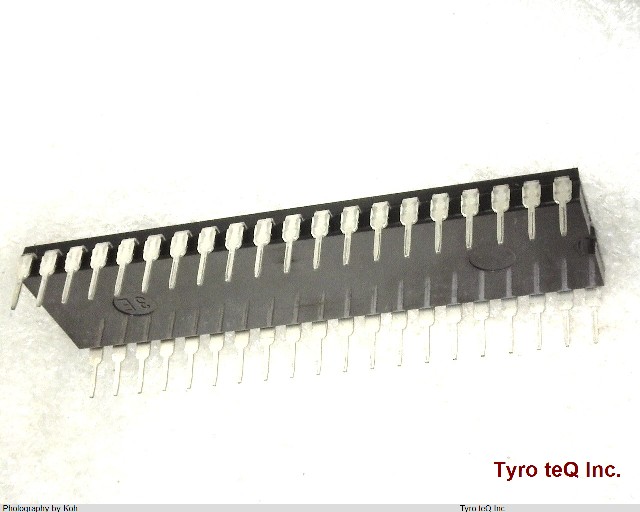

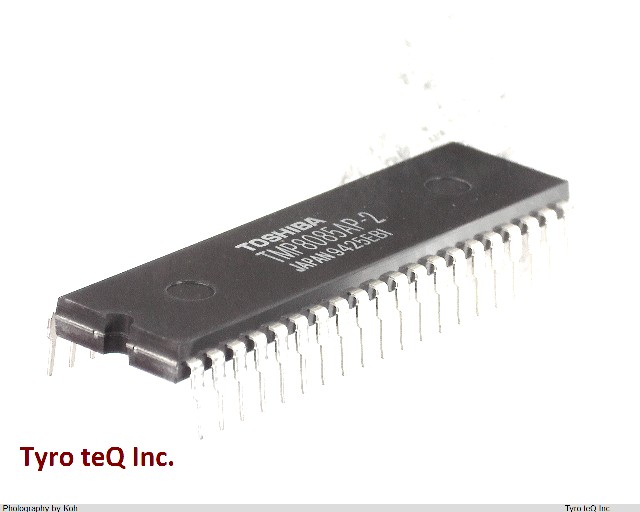

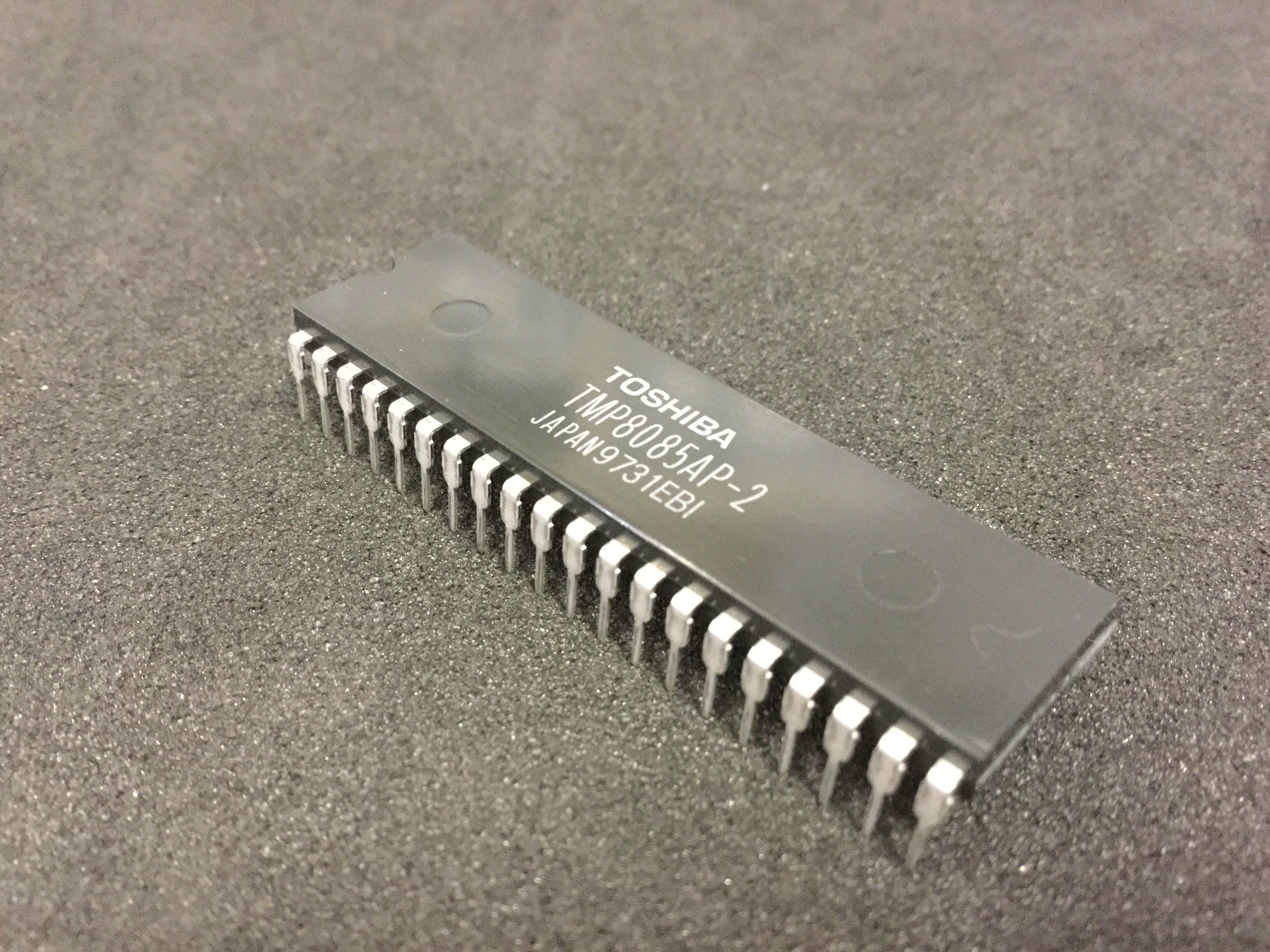

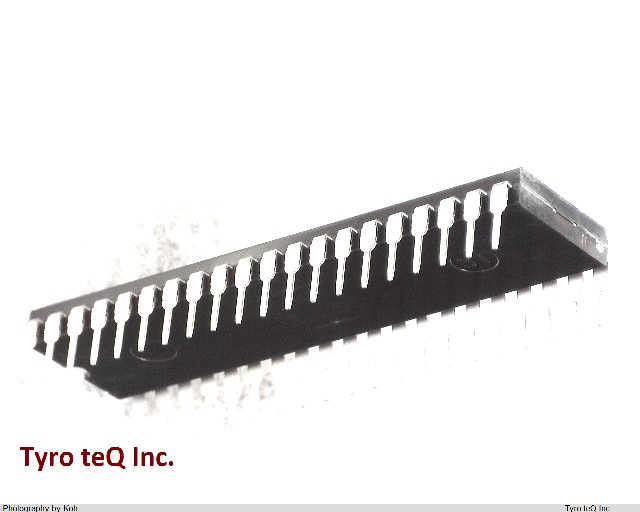

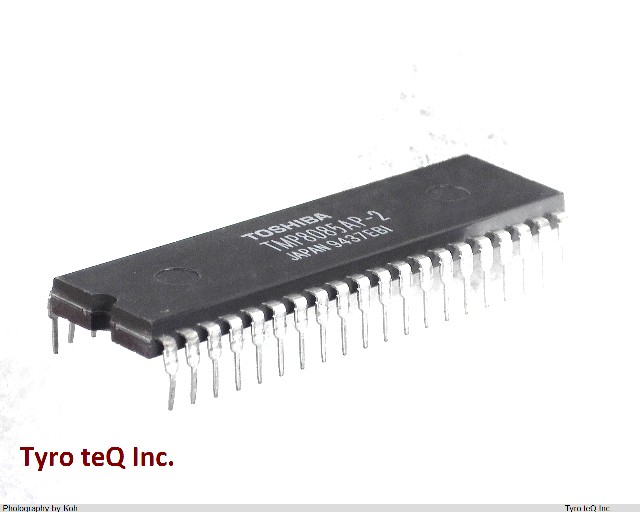

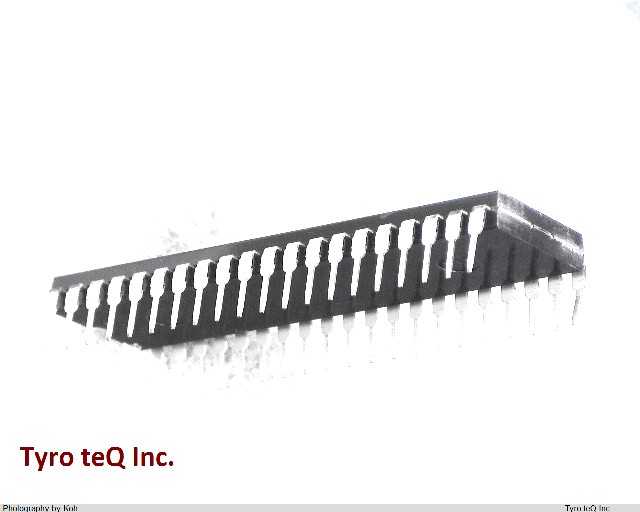

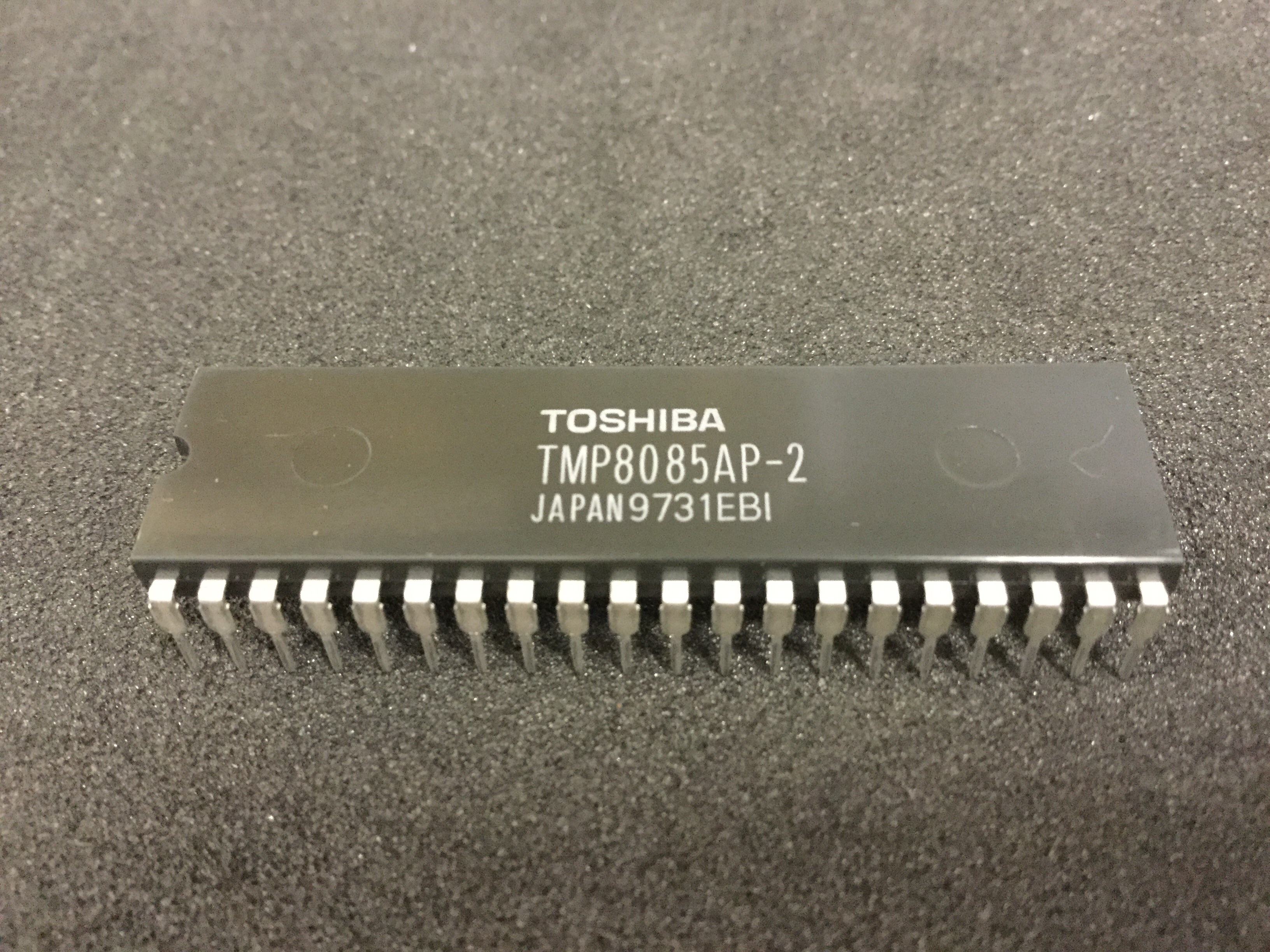

TMP8085AP-2 データシート

Name: TMP8085AP-2
Brand: TOSHIBA
SKU: 300005783-0000-0000-0000

TMP8085AP-2 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP8085AP-2 の詳細情報

型番	TMP8085AP-2
メーカー	TOSHIBA
種別	マイクロコンピュータ
データシート
Additional Feature	ON-CHIP CLOCK GENERATOR
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	10 MHz
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	50.7 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	5
Number of Serial I/Os	1
Number of Terminals	40
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	4.8 mm
Speed	5 rpm
Supply Current-Max	170 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
