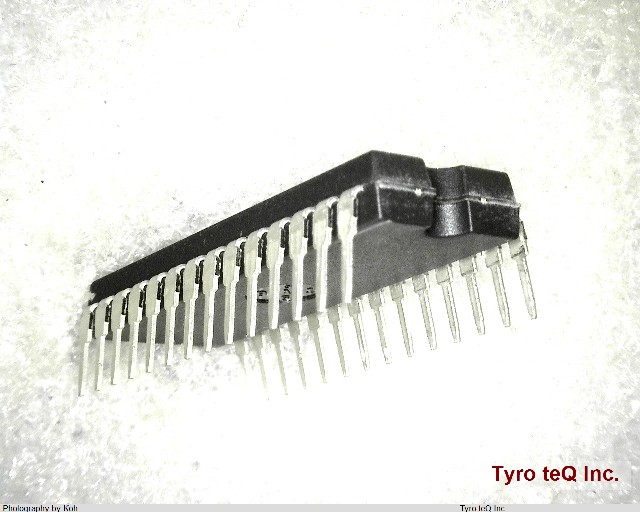

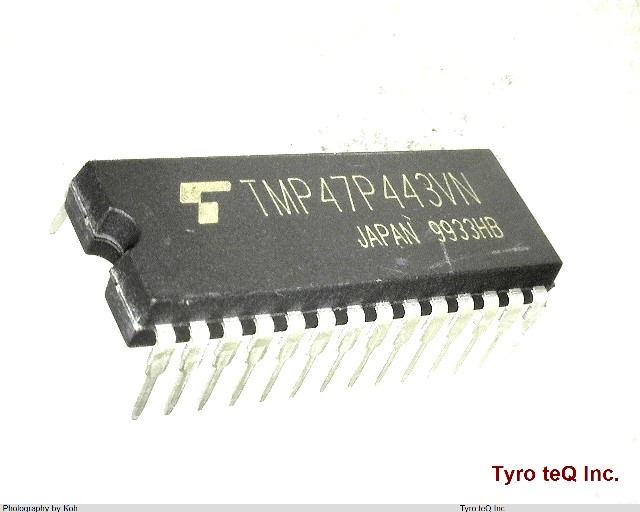

TMP47P443VN データシート

Name: TMP47P443VN
Brand: TOSHIBA
SKU: 300028376-0000-0000-0000

TMP47P443VN - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TMP47P443VN の詳細情報

型番	TMP47P443VN
メーカー	TOSHIBA
データシート
ADC Channels	YES
Additional Feature	OPERATES AT 2.2V MIN SUPPLY @ 4.2 MHZ
Address Bus Width	0
Bit Size	4
CPU Family	TLCS-47E
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	25.6 mm
Number of I/O Lines	22
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-30 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP28,.4
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2.2/5.5 V
Qualification Status	Not Qualified
RAM (bytes)	128
ROM (words)	4096
ROM Programmability	OTPROM
Seated Height-Max	4.1 mm
Speed	8 rpm
Sub Category	Microcontrollers
Supply Current-Max	4 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10.16 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
