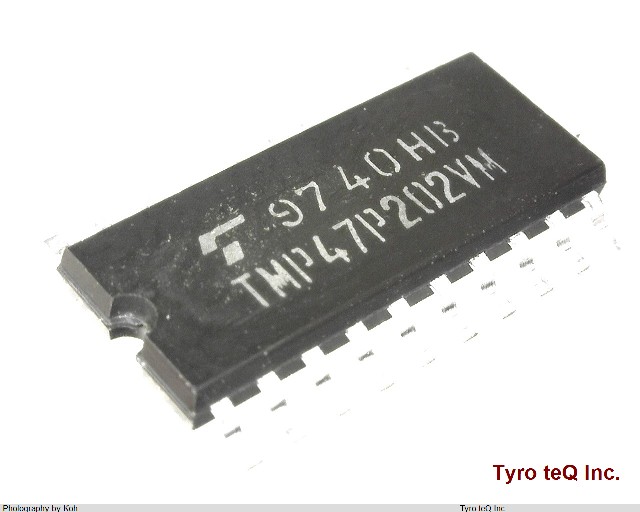

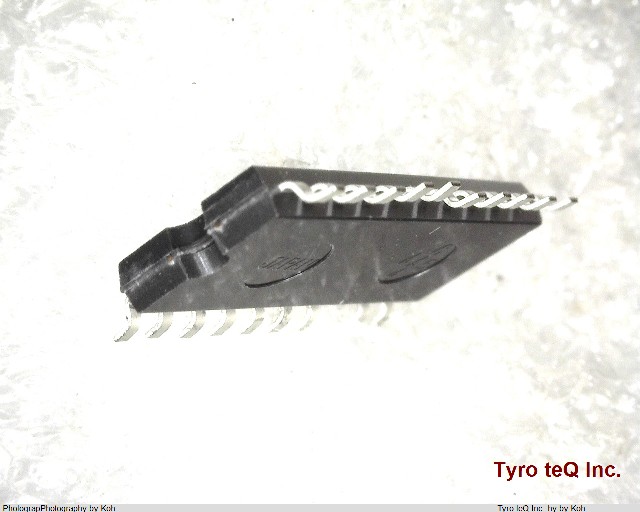

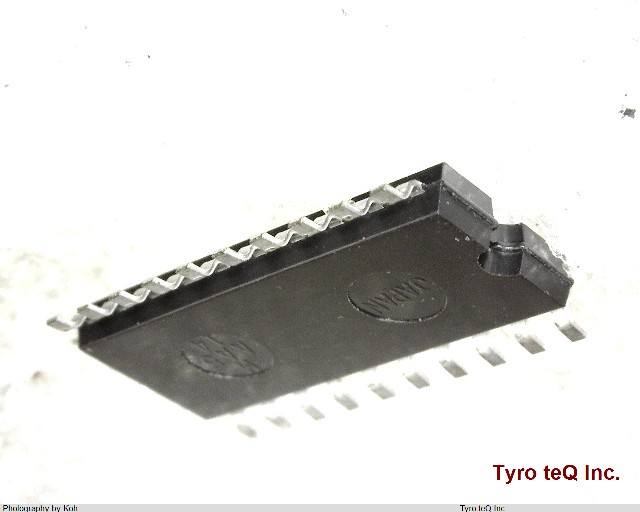

TMP47P202VM データシート

Name: TMP47P202VM
Brand: TOSHIBA
SKU: 400058071-0000-0000-0000

TMP47P202VM - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMP47P202VM の詳細情報

型番	TMP47P202VM
メーカー	TOSHIBA
データシート
ADC Channels	NO
Additional Feature	OPERATES AT 2.2V MIN SUPPLY @ 2.5 MHZ
Address Bus Width	0
Bit Size	4
CPU Family	TLCS-47E
Clock Frequency-Max	6 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDSO-G20
Length	12.8 mm
Number of I/O Lines	14
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-30 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	64
ROM (words)	2048
ROM Programmability	OTPROM
Seated Height-Max	1.8 mm
Speed	6 rpm
Sub Category	Microcontrollers
Supply Current-Max	4 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
