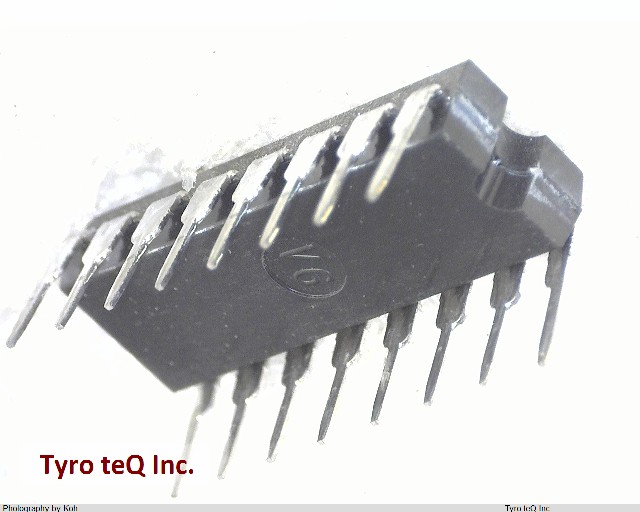

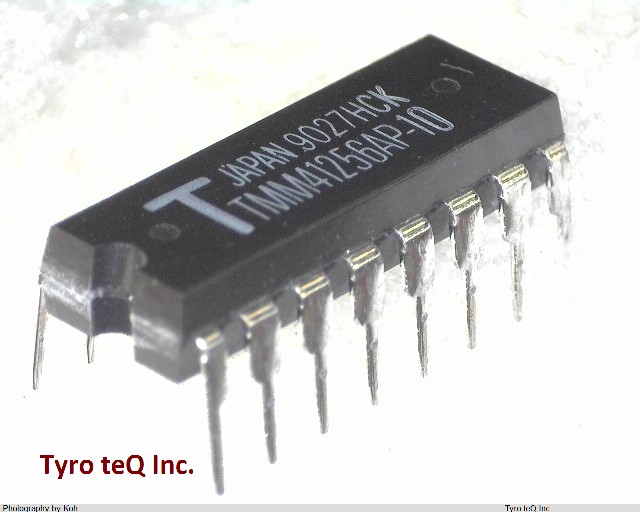

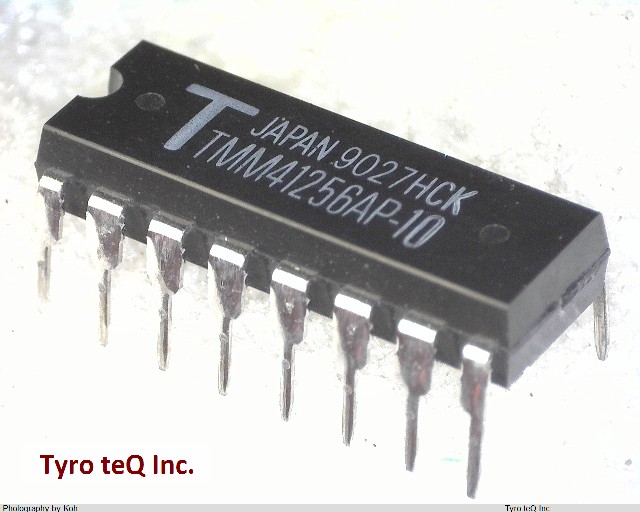

TMM41256AP-10 データシート

Name: TMM41256AP-10
Brand: TOSHIBA
SKU: 300027921-0000-0000-0000

TMM41256AP-10 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TMM41256AP-10 の詳細情報

型番	TMM41256AP-10
メーカー	TOSHIBA
データシート
Access Mode	FAST PAGE
Access Time-Max	100 ns
Additional Feature	CAS BEFORE RAS/RAS ONLY/HIDDEN REFRESH; LG-MAX
I/O Type	SEPARATE
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.9 mm
Memory Density	262144 bit
Memory IC Type	FAST PAGE DRAM
Memory Width	1
Number of Functions	1
Number of Ports	1
Number of Terminals	16
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	256KX1
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Refresh Cycles	256
Seated Height-Max	5 mm
Sub Category	DRAMs
Supply Current-Max	0.08 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
