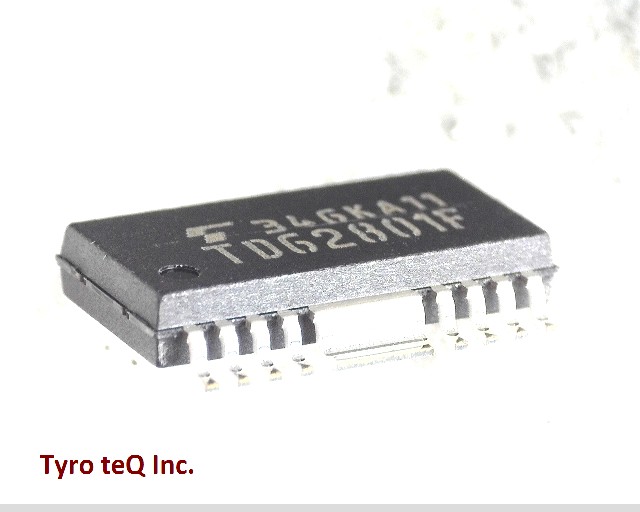

TD62801F データシート

Name: TD62801F
Brand: TOSHIBA
SKU: 300000420-0000-0000-0000

TD62801F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62801F の詳細情報

型番	TD62801F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	SIPO BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	13 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.06 A
Output Peak Current Limit-Nom	0.06 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	HSSOP
Package Equivalence Code	SOP16/24,.37,40
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.85 mm
Sub Category	Peripheral Drivers
Supply Current-Max	80 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	DUAL
Turn-off Time	1.5 us
Turn-on Time	6.5 us
Width	6.4 mm
