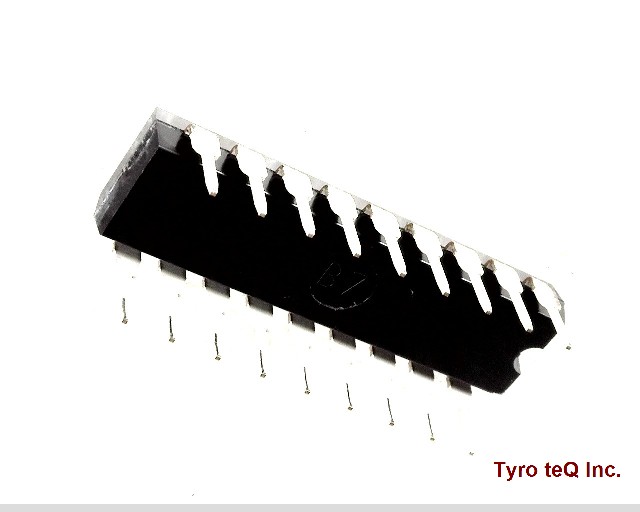

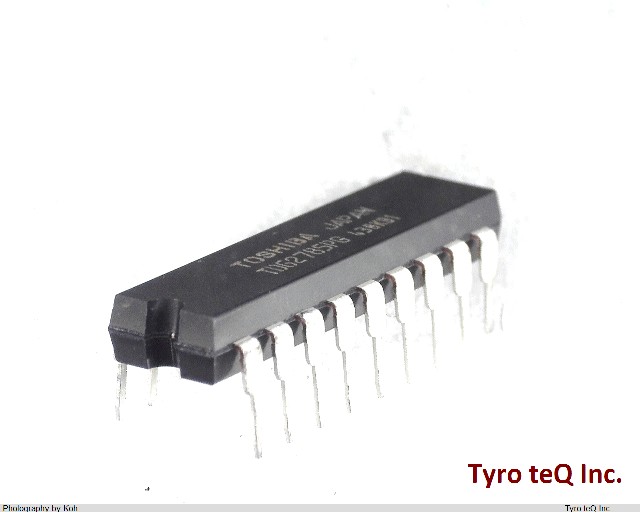

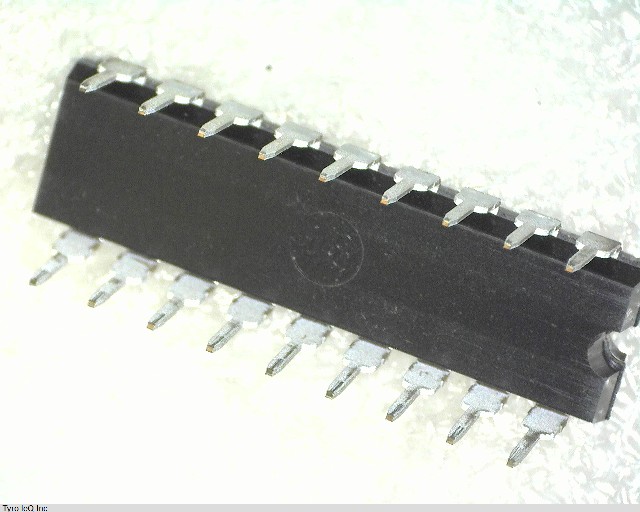

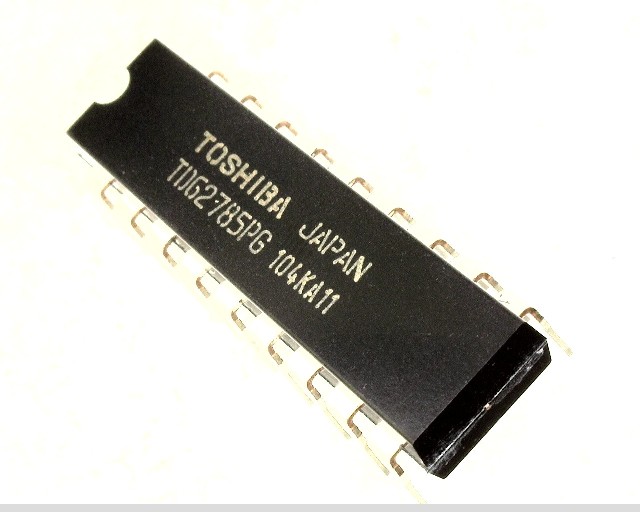

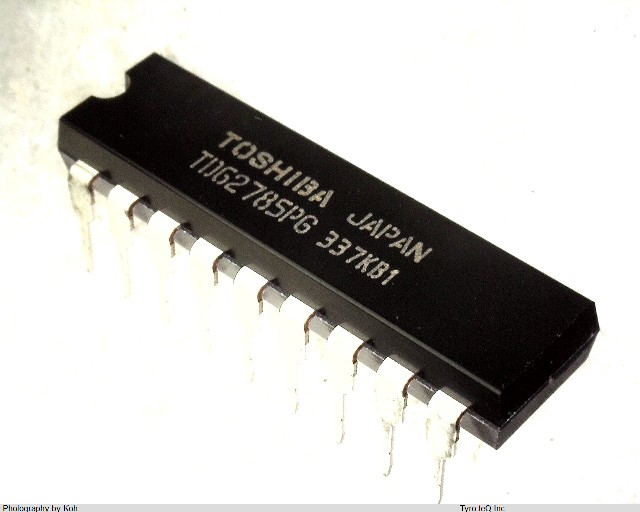

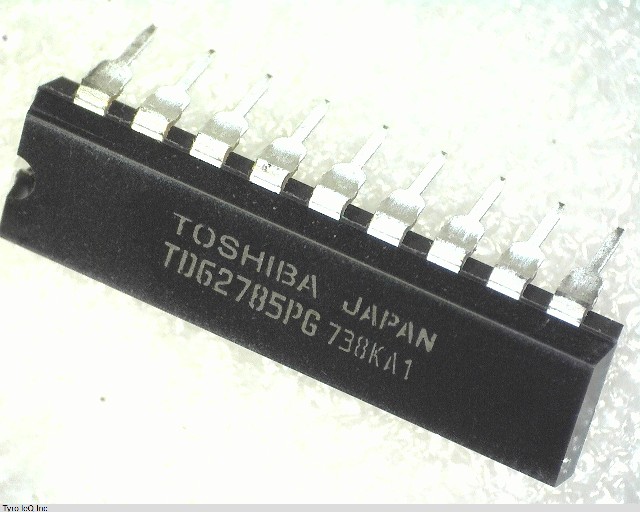

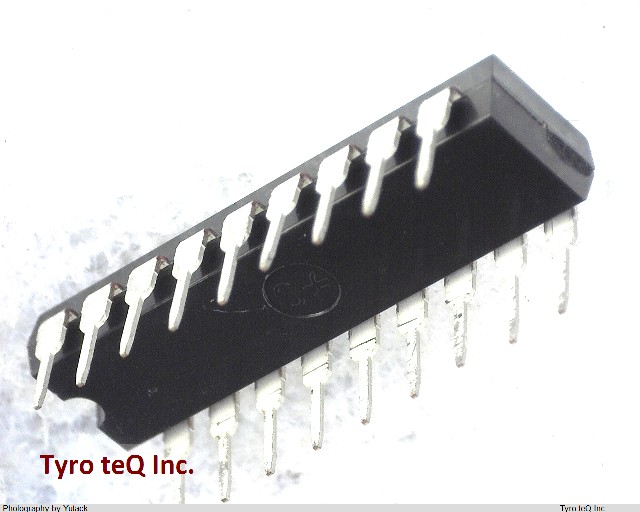

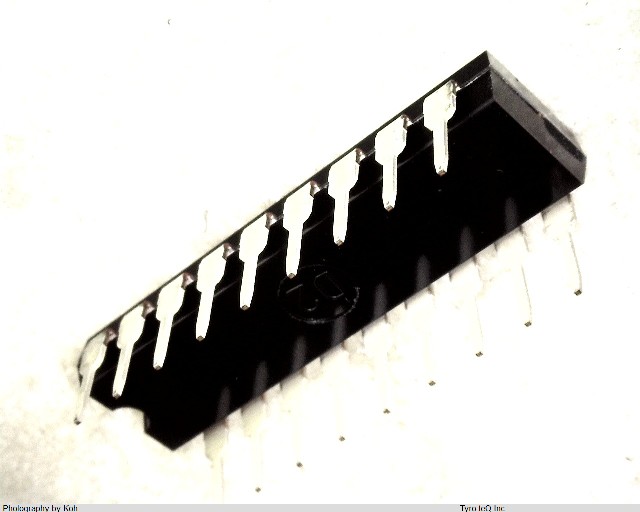

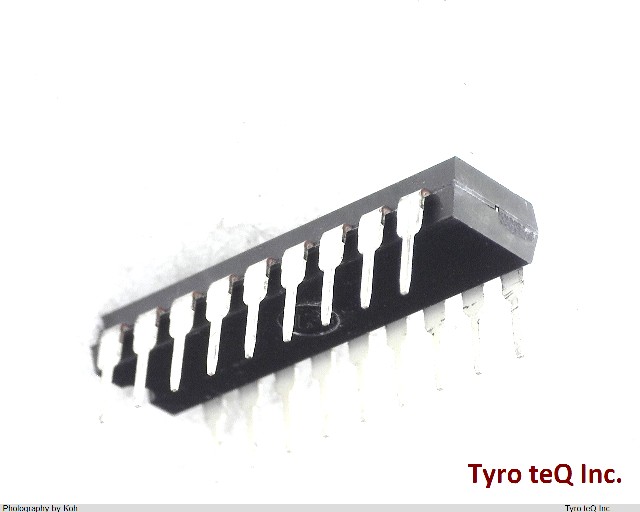

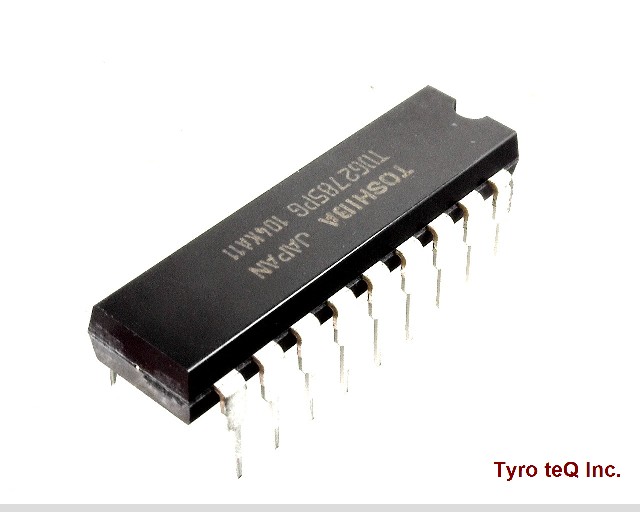

TD62785PG データシート

Name: TD62785PG
Brand: TOSHIBA
SKU: 300221466-0000-0000-0000

TD62785PG - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | ソース型ダーリントンドライバ|パッケージ : DIP18

TD62785PG の詳細情報

型番	TD62785PG
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	PARALLEL
Display Mode	DIGIT
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T18
Length	24.6 mm
Multiplexed Display Capability	YES
Number of Digits/Characters	8-DIGIT
Number of Functions	1
Number of Segments	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Display Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
