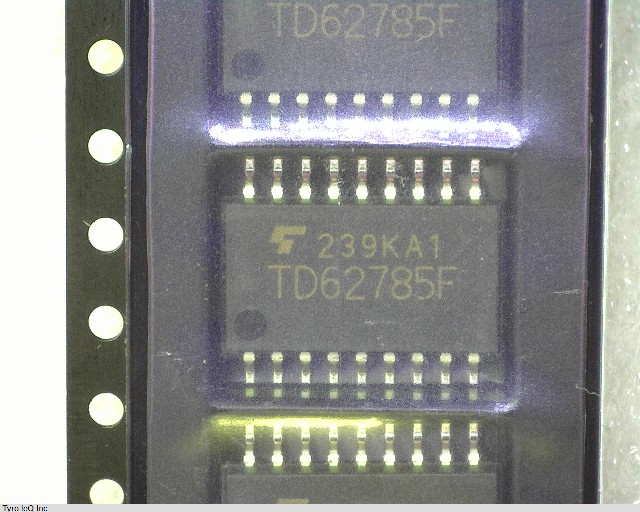

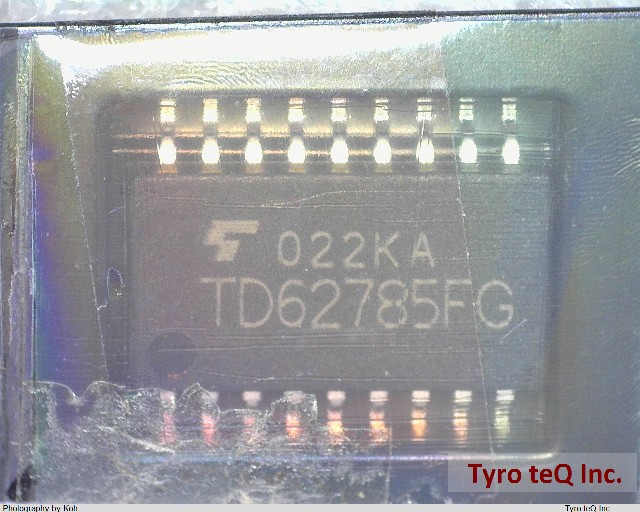

TD62785F データシート

Name: TD62785F
Brand: TOSHIBA
SKU: 300000418-0000-0000-0000

TD62785F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | ソース型ダーリントンドライバ

TD62785F の詳細情報

型番	TD62785F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	PARALLEL
Display Mode	DIGIT
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G18
JESD-609 Code	e0
Length	12.5 mm
Multiplexed Display Capability	NO
Number of Digits/Characters	8-DIGIT
Number of Functions	1
Number of Segments	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-EMITTER
Output Current Flow Direction	SOURCE
Output Peak Current Limit-Nom	0.5 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP18,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.45 mm
Sub Category	Display Drivers
Supply Current-Max	12.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7 mm
