TD62784AP データシート

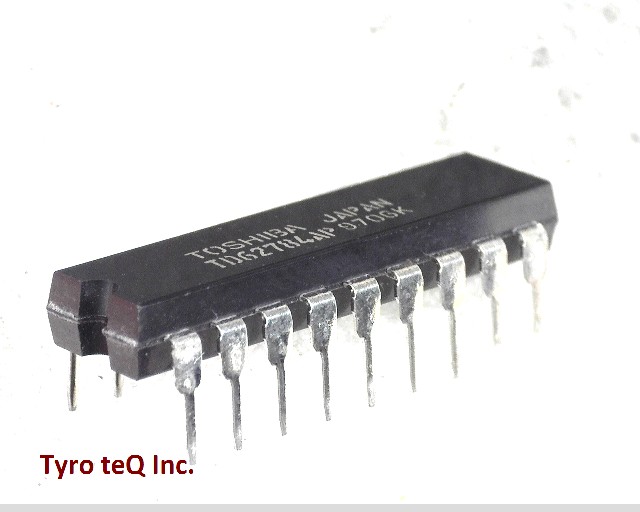

Name: TD62784AP
Brand: TOSHIBA
SKU: 300002262-0000-0000-0000

TD62784AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | ソース型ダーリントンドライバ

TD62784AP の詳細情報

型番	TD62784AP
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Data Input Mode	PARALLEL
Driver Number of Bits	8
Interface IC Type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	24.6 mm
Multiplexed Display Capability	NO
Number of Functions	8
Number of Segments	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.26 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	12 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Peripheral Drivers
Supply Current-Max	20 mA
Supply Voltage-Max	50 V
Supply Voltage-Nom	12 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
