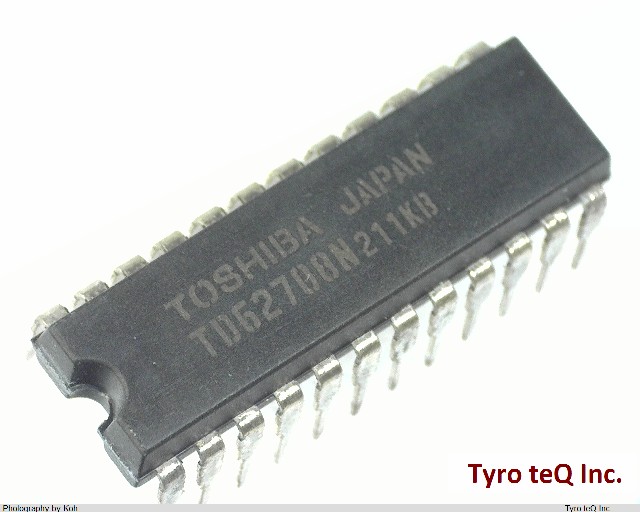

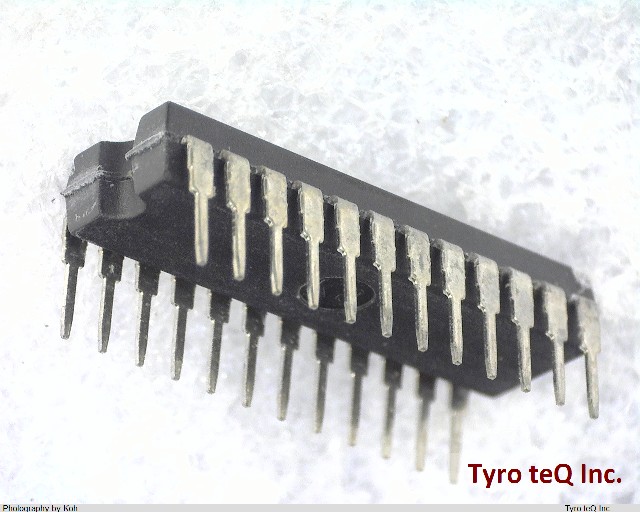

TD62708N データシート

Name: TD62708N
Brand: TOSHIBA
SKU: 300021198-0000-0000-0000

TD62708N - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | 高耐圧ソース型ドライバ

TD62708N の詳細情報

型番	TD62708N
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	AND GATE BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	22 mm
Number of Functions	8
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-EMITTER
Output Current Flow Direction	SOURCE
Output Current-Max	1.44 A
Output Peak Current Limit-Nom	1.44 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.5 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	30 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	3.5 us
Turn-on Time	1 us
Width	7.62 mm
