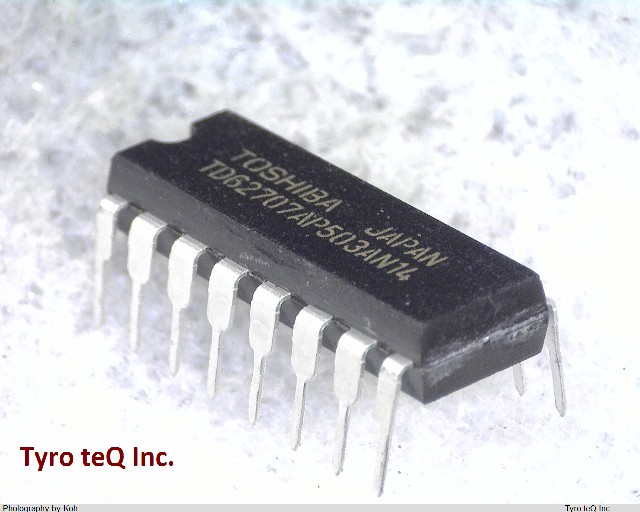

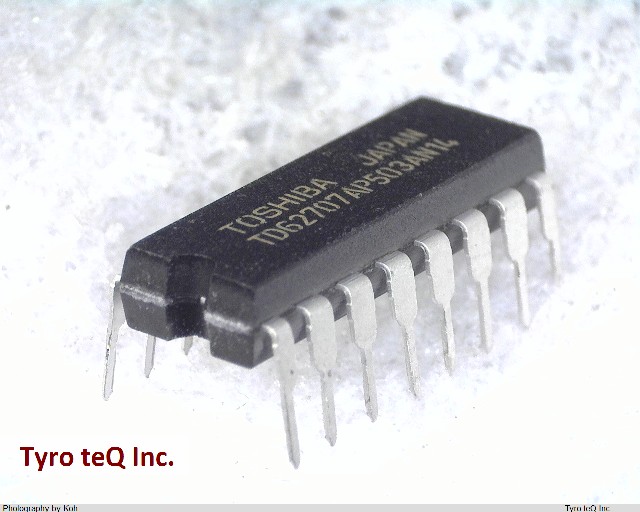

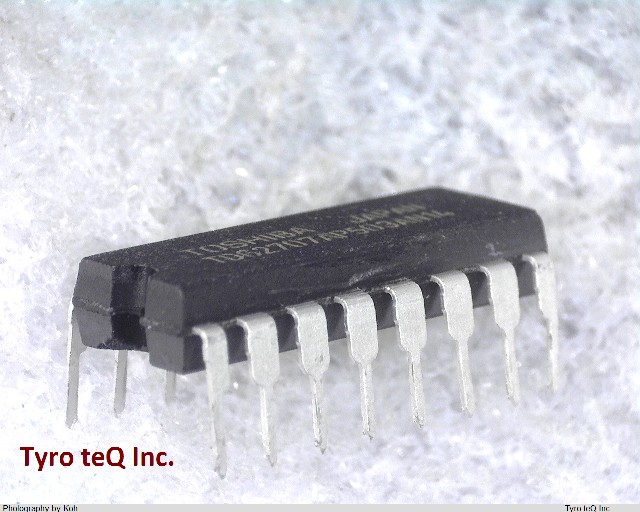

TD62707AP データシート

Name: TD62707AP
Brand: TOSHIBA
SKU: 300241459-0000-0000-0000

TD62707AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | 高耐圧ソース型ドライバ

TD62707AP の詳細情報

型番	TD62707AP
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	4
Input Characteristics	STANDARD
Interface IC Type	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-EMITTER
Output Current Flow Direction	SOURCE
Output Current-Max	0.6 A
Output Peak Current Limit-Nom	0.6 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Peripheral Drivers
Supply Current-Max	7 mA
Supply Voltage-Max	50 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
