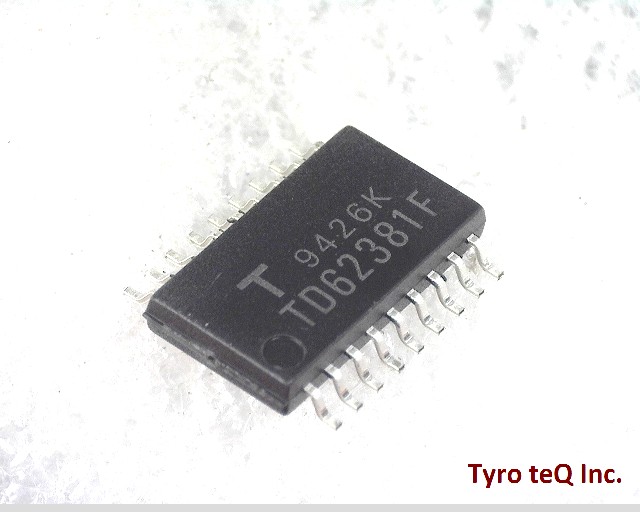

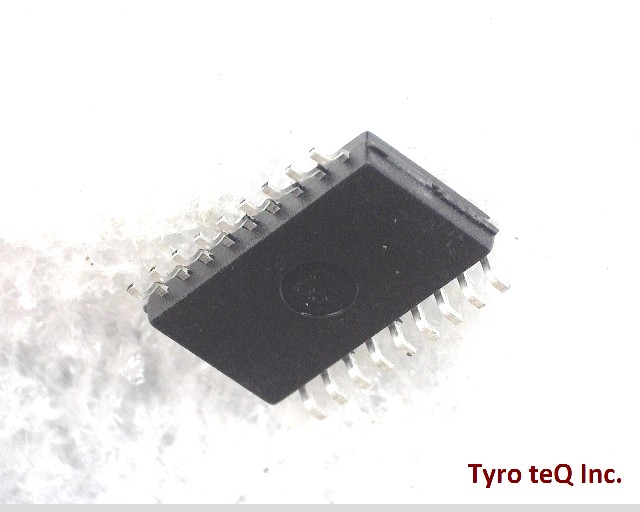

TD62381F データシート

Name: TD62381F
Brand: TOSHIBA
SKU: 300004197-0000-0000-0000

TD62381F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62381F の詳細情報

型番	TD62381F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Data Input Mode	PARALLEL
Display Mode	DIGIT
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G18
Length	6.5 mm
Multiplexed Display Capability	NO
Number of Digits/Characters	8-DIGIT
Number of Functions	1
Number of Segments	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.5 A
Output Peak Current Limit-Nom	0.35 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP18,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.55 mm
Sub Category	Peripheral Drivers
Supply Current-Max	136 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
