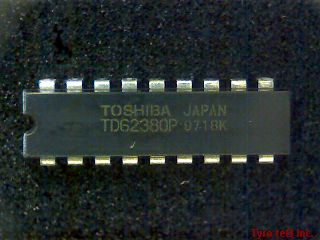

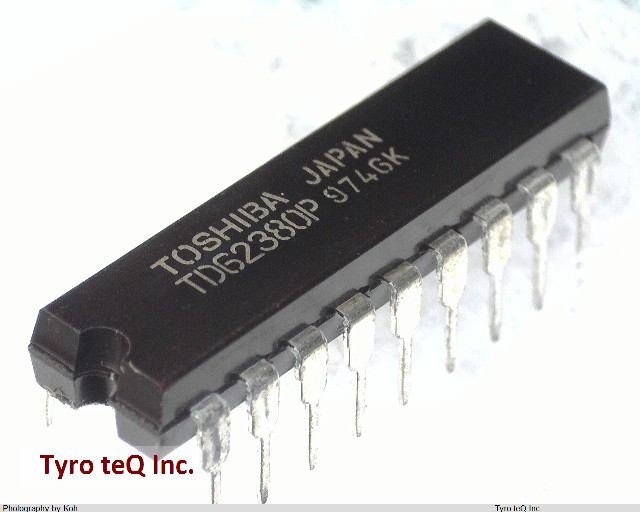

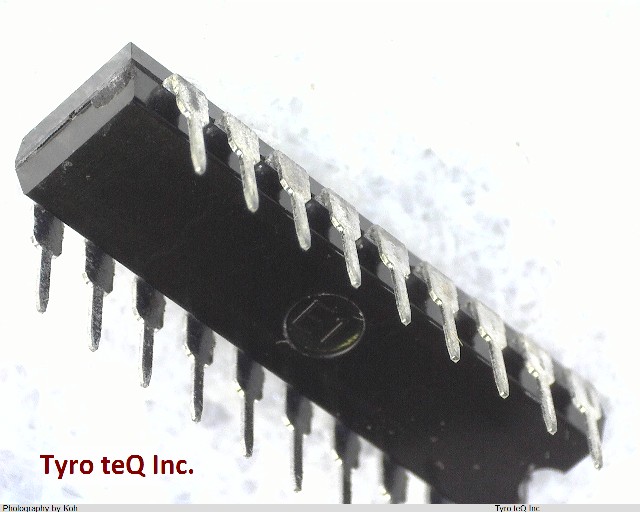

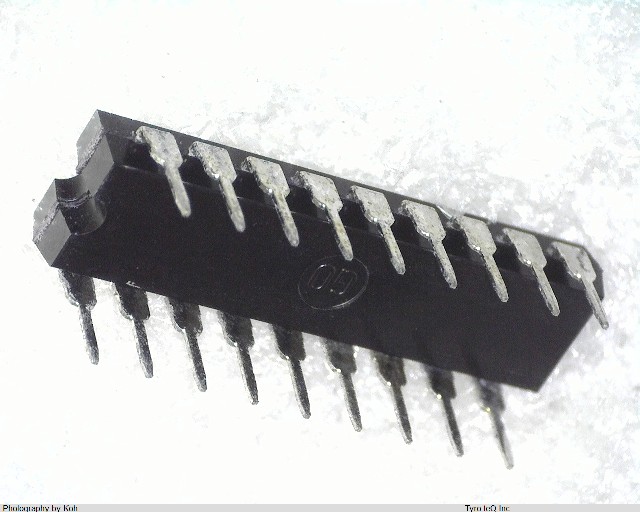

TD62380P データシート

Name: TD62380P
Brand: TOSHIBA
SKU: 300002258-0000-0000-0000

TD62380P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62380P の詳細情報

型番	TD62380P
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Display Mode	SEGMENT
Driver Number of Bits	8
Input Characteristics	STANDARD
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	24.6 mm
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	8
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current-Max	120 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Peripheral Drivers
Supply Current-Max	64 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
