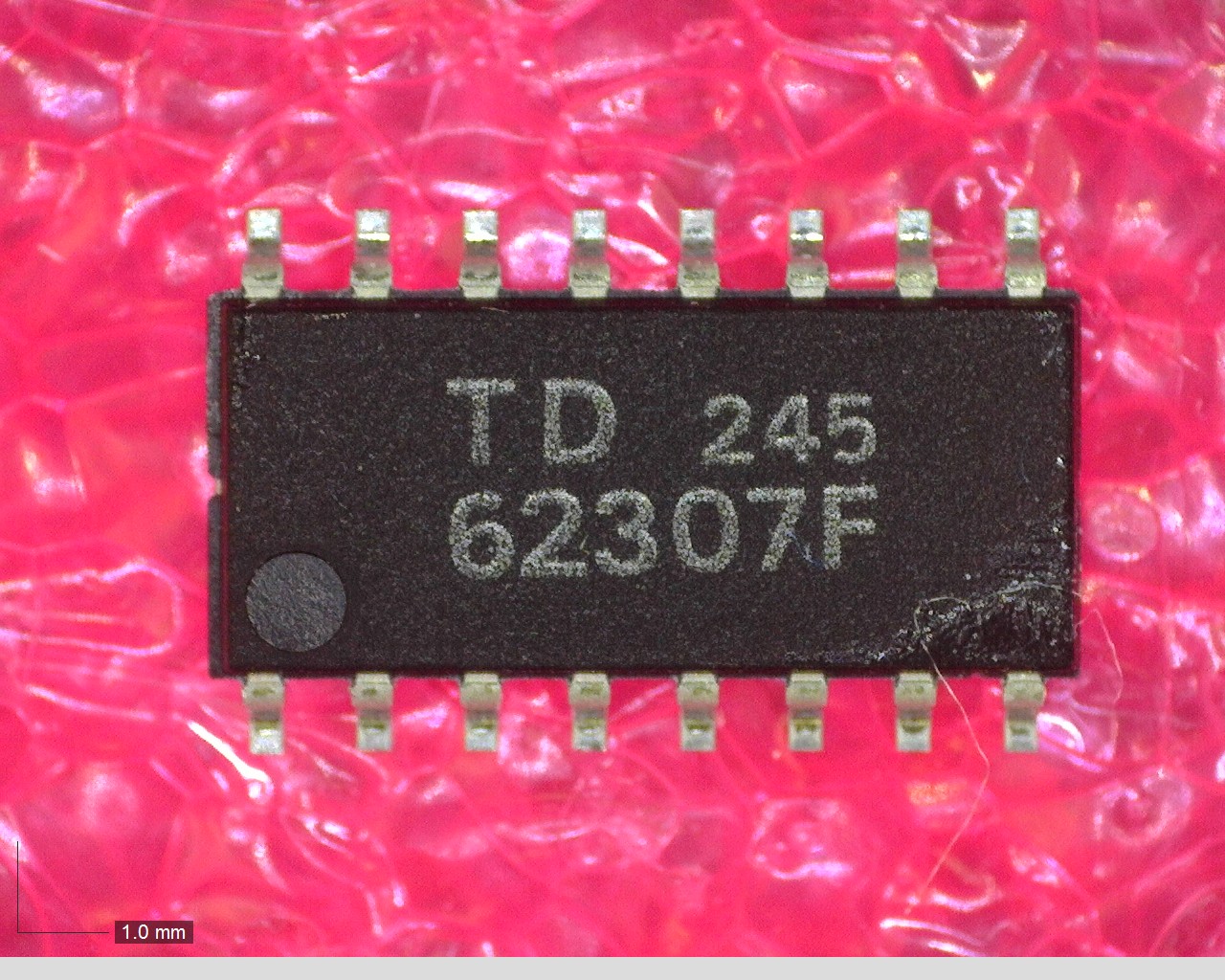

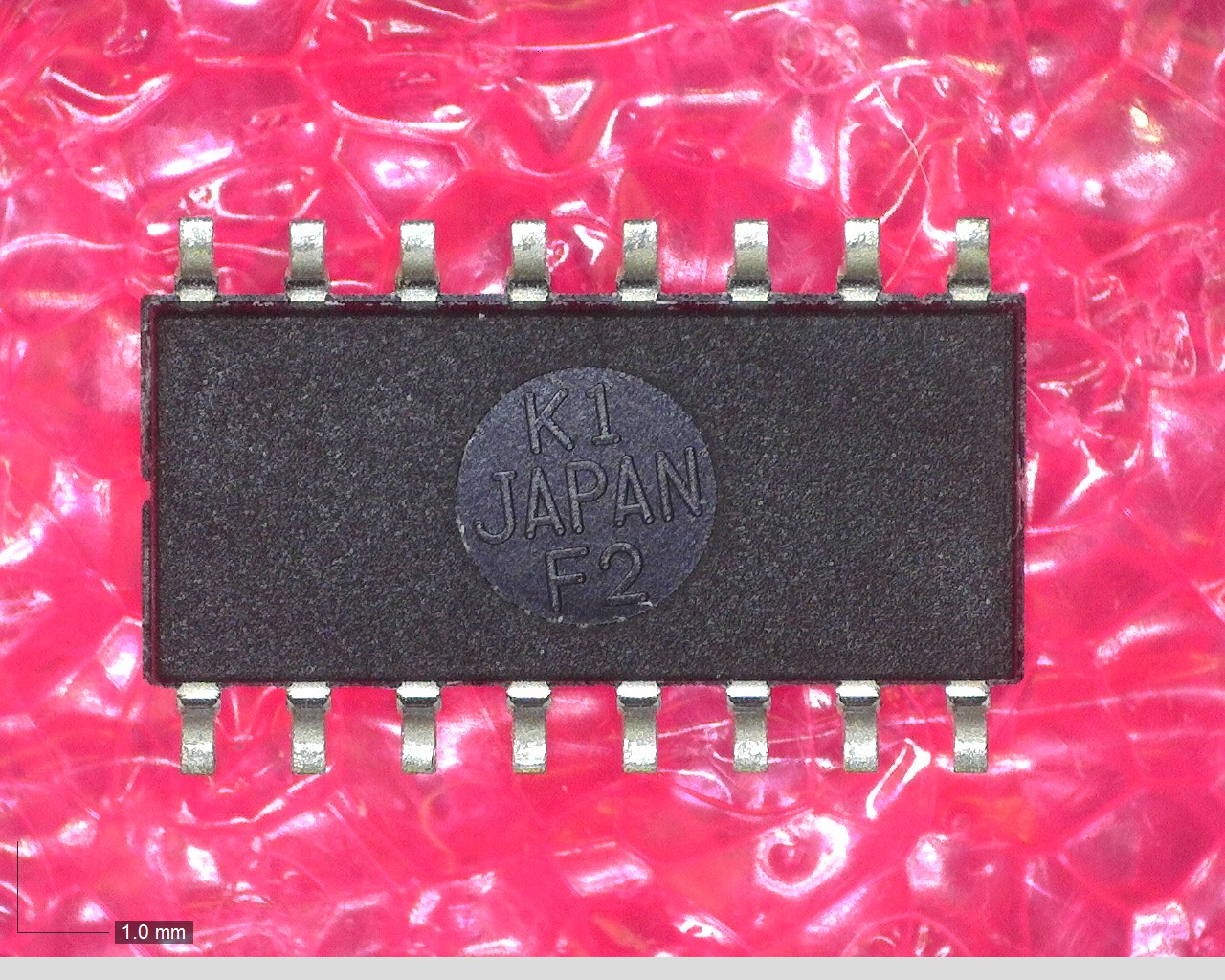

TD62307F データシート

Name: TD62307F
Brand: TOSHIBA
SKU: 300021104-0000-0000-0000

TD62307F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62307F の詳細情報

型番	TD62307F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	7
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G16
Length	10 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.12 A
Output Peak Current Limit-Nom	0.1 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Peripheral Drivers
Supply Current-Max	154 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
