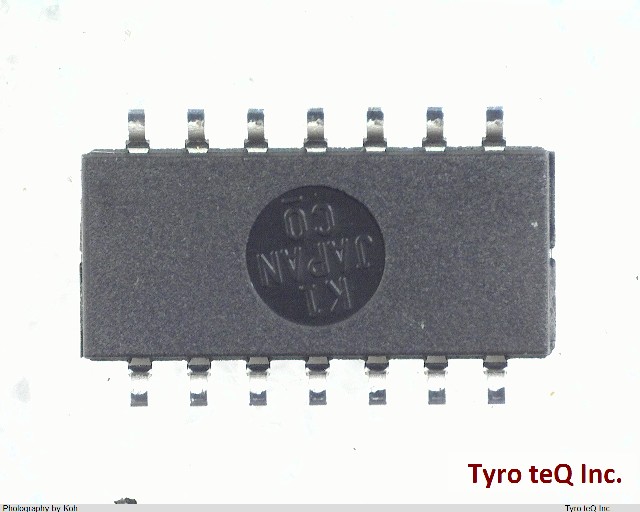

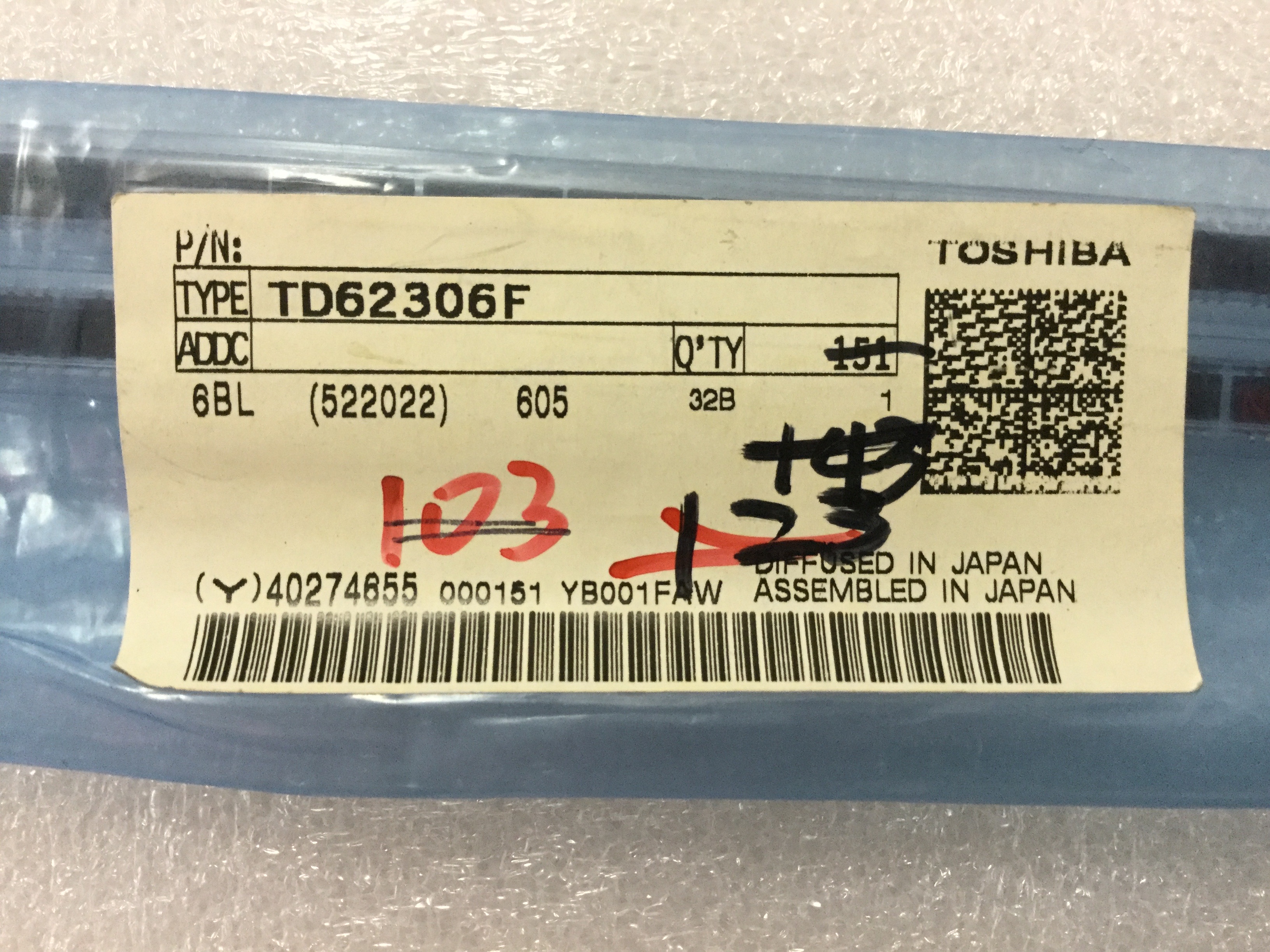

TD62306F データシート

Name: TD62306F
Brand: TOSHIBA
SKU: 300021101-0000-0000-0000

TD62306F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62306F の詳細情報

型番	TD62306F
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	6
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	10 mm
Number of Functions	6
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.12 A
Output Peak Current Limit-Nom	0.12 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Sub Category	Peripheral Drivers
Supply Current-Max	132 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	4.4 mm
