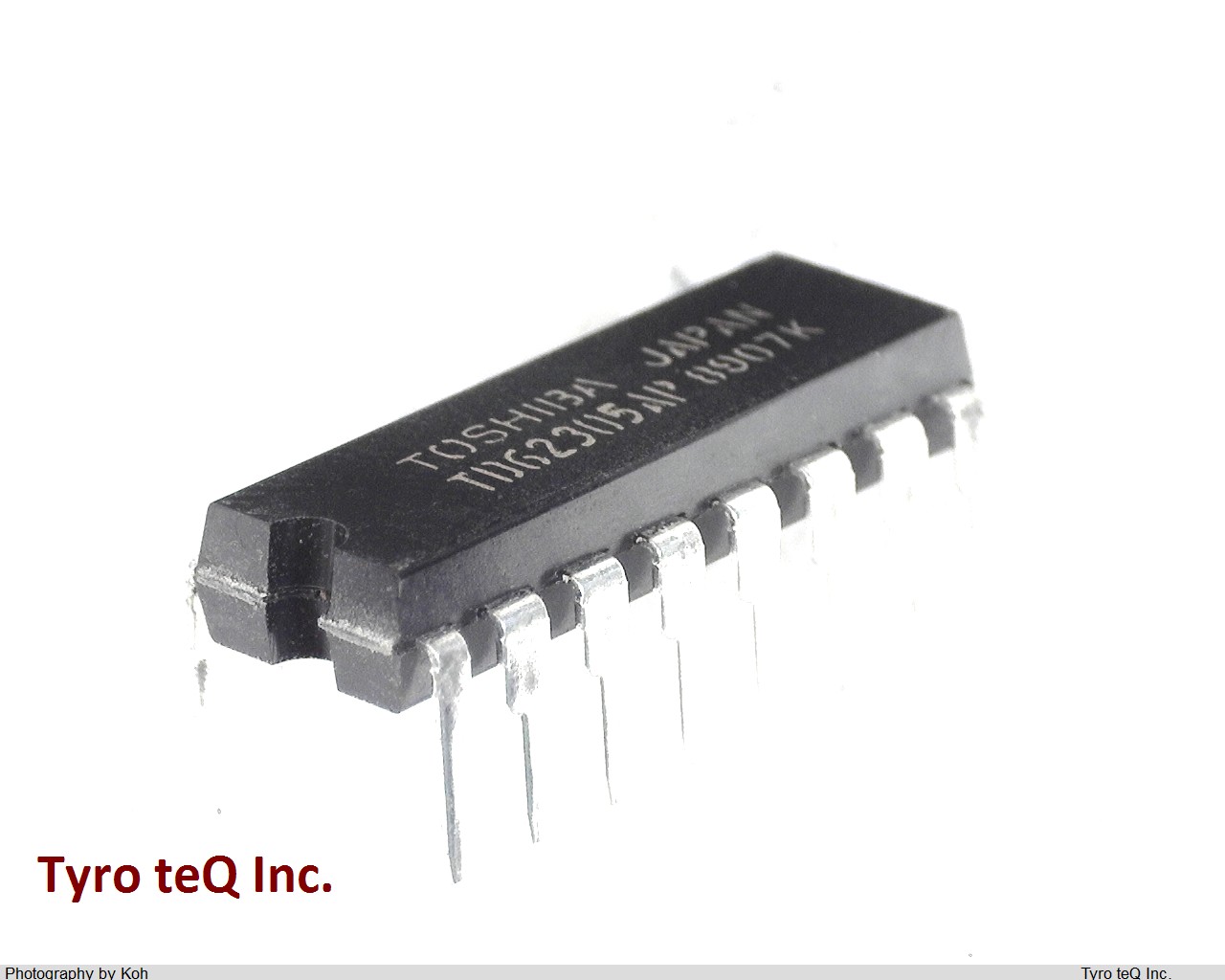

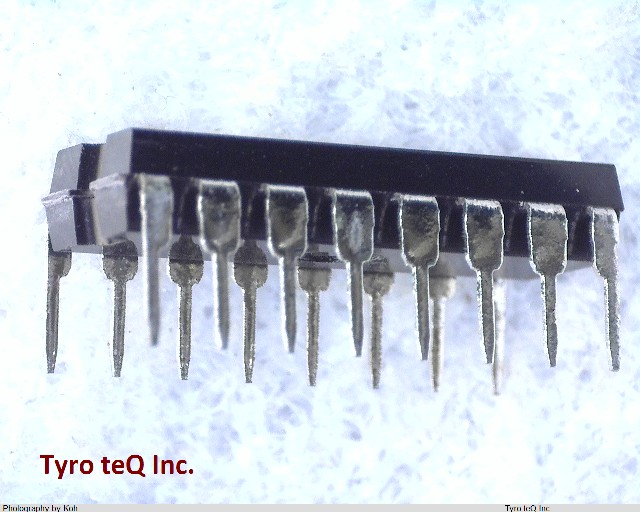

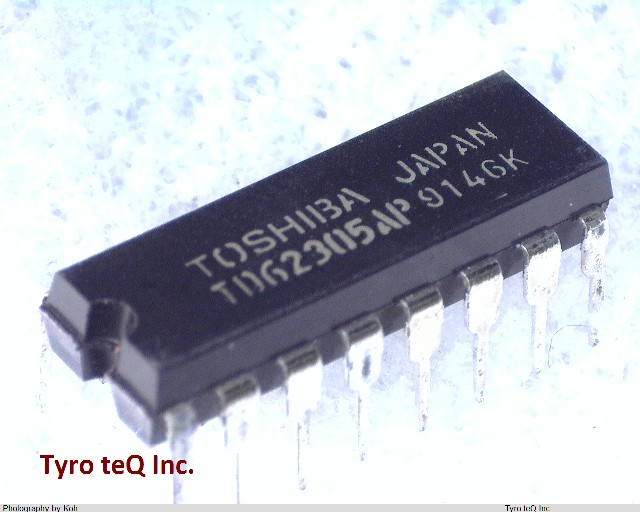

TD62305AP データシート

Name: TD62305AP
Brand: TOSHIBA
SKU: 300001021-0000-0000-0000

TD62305AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62305AP の詳細情報

型番	TD62305AP
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	7
Input Characteristics	STANDARD
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.35 A
Output Peak Current Limit-Nom	0.35 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Peripheral Drivers
Supply Current-Max	22 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
