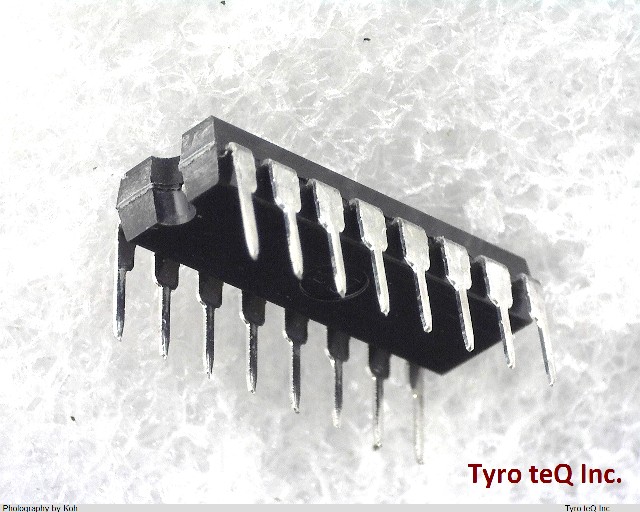

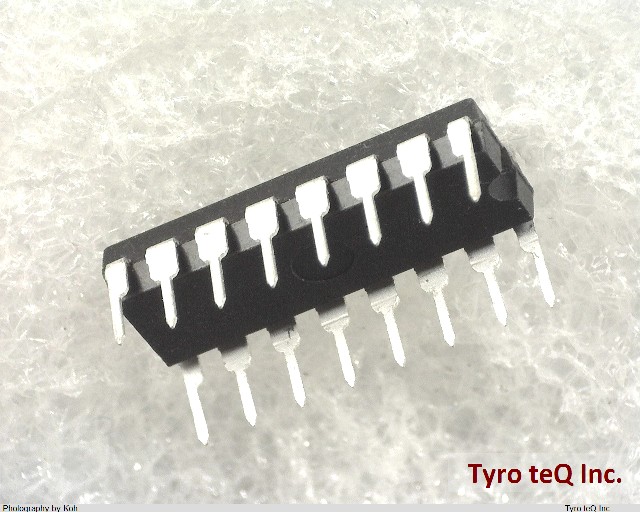

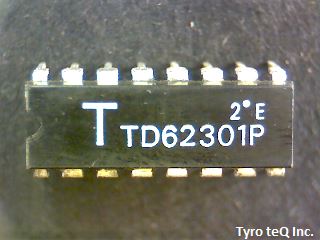

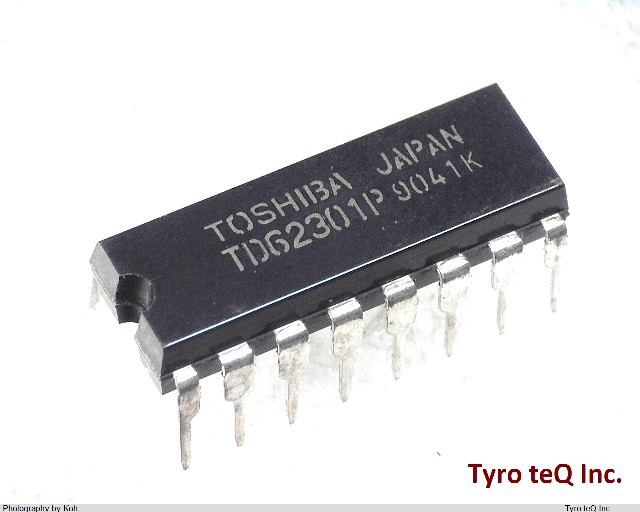

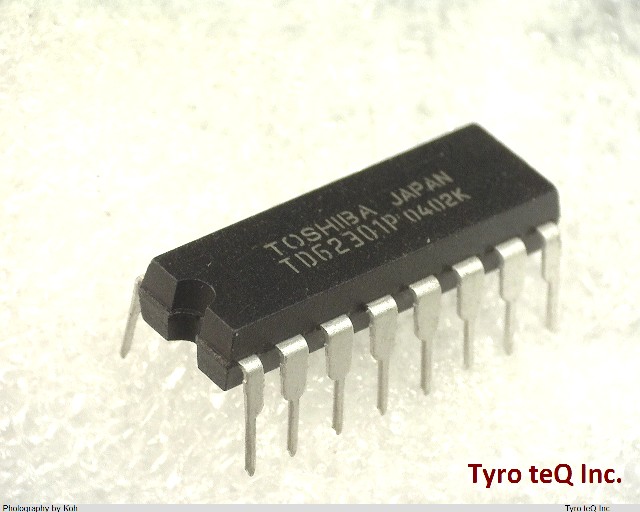

TD62301P データシート

Name: TD62301P
Brand: TOSHIBA
SKU: 300021091-0000-0000-0000

TD62301P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TD62301P の詳細情報

型番	TD62301P
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用リニアIC
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	7
High DC transfer ratio	1000 (Min.)
Input Characteristics	STANDARD
Input register	R1 = 2 kΩ, R2 = 20 kΩ
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Low saturation output	VCE (sat) = 0.7 V (Max.)
Number of Functions	7
Number of Terminals	16
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Output Characteristics	OPEN-COLLECTOR
Output Current Flow Direction	SINK
Output Current-Max	0.15 A
Output Peak Current Limit-Nom	0.18 A
Output Polarity	INVERTED
Output rating (single output)	15 V (Min.) / 200 mA (Max.)
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Peripheral Drivers
Supply Current-Max	154 mA
Supply Voltage-Max	6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
description	7NPN 低出力飽和電圧型トランジスタアレイで、入力抵抗内蔵、出力クランプダイオード内蔵です。
package	DIP16-P-300-2.54A
メーカー	TOSHIBA
