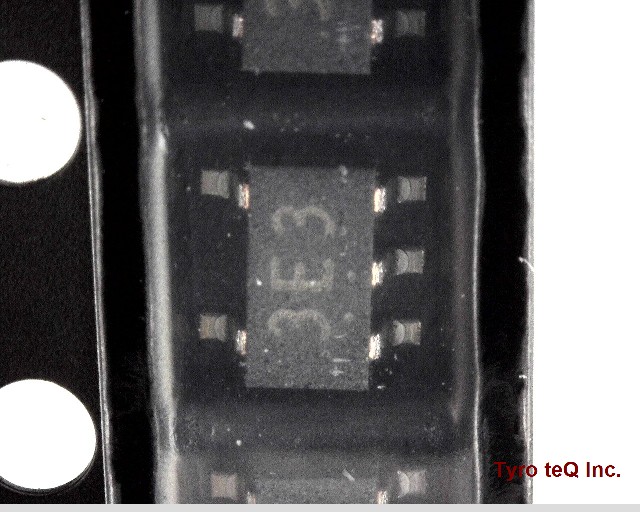

TCR5SB33(TE85L F) データシート

Name: TCR5SB33(TE85L F)
Brand: TOSHIBA
SKU: 300322927-0000-0000-0000

TCR5SB33(TE85L F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | CMOSポイントレギュレータ

TCR5SB33(TE85L F) の詳細情報

型番	TCR5SB33(TE85L F)
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.19 V
Dropout Voltage1-Nom	0.085 V
Input Voltage Absolute-Max	6 V
Input Voltage-Max	6 V
Input Voltage-Min	3.8 V
JESD-30 Code	R-PDSO-G5
Length	2.9 mm
Line Regulation-Max	0.015 %
Load Regulation-Max	0.075 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	150 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.2 A
Output Voltage1-Max	3.37 V
Output Voltage1-Min	3.23 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP5,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.4 mm
Surface Mount	YES
Technology	CMOS
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Voltage Tolerance-Max	2.12121 %
Width	1.6 mm
