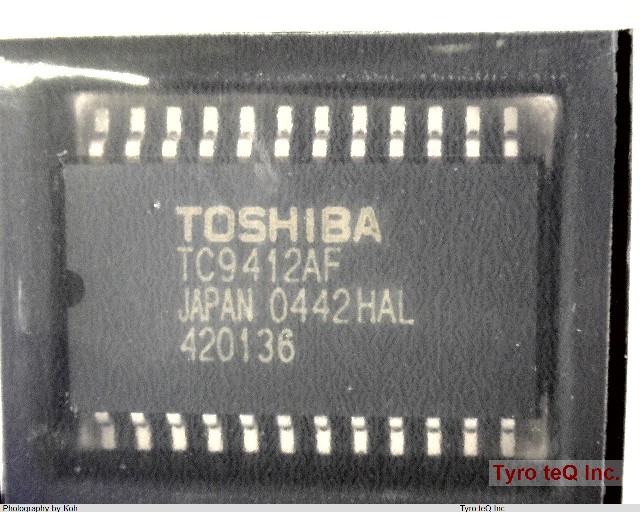

TC9412AF データシート

Name: TC9412AF
Brand: TOSHIBA
SKU: 300020316-0000-0000-0000

TC9412AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC9412AF の詳細情報

型番	TC9412AF
メーカー	TOSHIBA
データシート
Additional Feature	IT CAN ALSO OPERATES WITH 6V TO 18V SINGLE POWER SUPPLY
Channel Separation	100 dB
Consumer IC Type	VOLUME CONTROL CIRCUIT
Harmonic Distortion	0.005 %
JESD-30 Code	R-PDSO-G24
Length	16 mm
Number of Channels	2
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.45
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.3 mm
Sub Category	Audio Control ICs
Supply Current-Max	2 mA
Supply Voltage-Max (Vsup)	17 V
Supply Voltage-Min (Vsup)	6 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	8.8 mm
