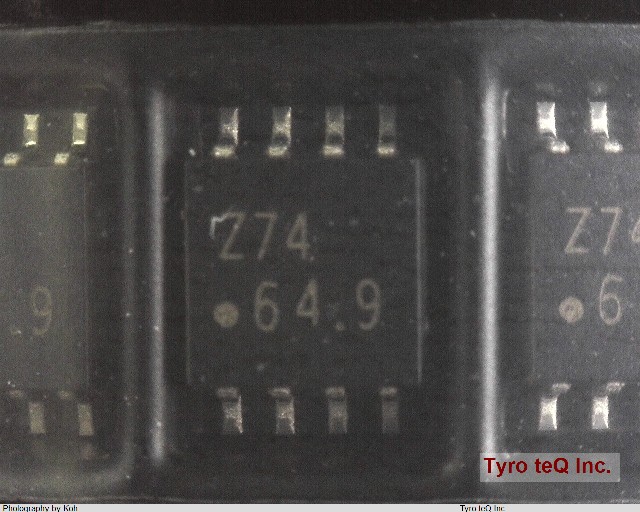

TC7WZ74FU データシート

Name: TC7WZ74FU
Brand: TOSHIBA
SKU: 300019892-0000-0000-0000

TC7WZ74FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7WZ74FU の詳細情報

型番	TC7WZ74FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用ロジックIC
データシート
Family	LVC/LCX/Z
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G8
Length	2.9 mm
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	150000000 Hz
Max I(ol)	0.024 Amp
Number of Bits	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	7 ns
Propagation Delay (tpd)	23 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	1.65
Width	2.8 mm
fmax-Min	180 MHz
tpd_tpz (Typ.)(nsec)	2.4
グループ	TC7WZ
ゲート数	1
ピン数	8
機能1	Flip-Flop
機能2	D-Type Flip-Flop
