TC7WH241FU(TE12L) データシート

Name: TC7WH241FU(TE12L)
Brand: TOSHIBA
SKU: 300223093-0000-0000-0000

TC7WH241FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

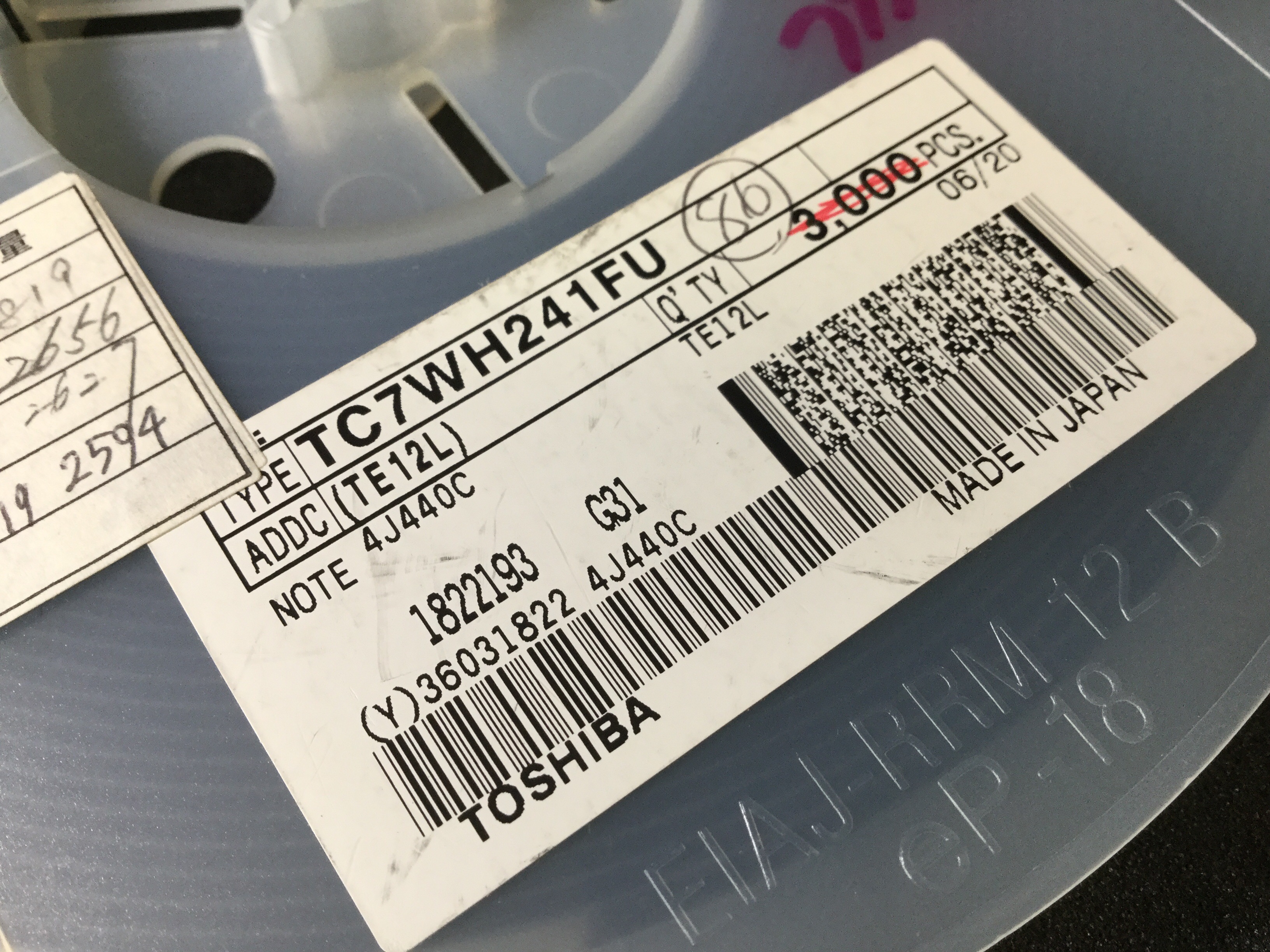

TE12L:12mm幅テーピング

TC7WH241FU(TE12L) の詳細情報

型番	TC7WH241FU(TE12L)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Additional Feature	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
Control Type	ENABLE LOW/HIGH
Family	HC/UH
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.004 Amp
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	12.5 ns
Propagation Delay (tpd)	12.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	2.8 mm
