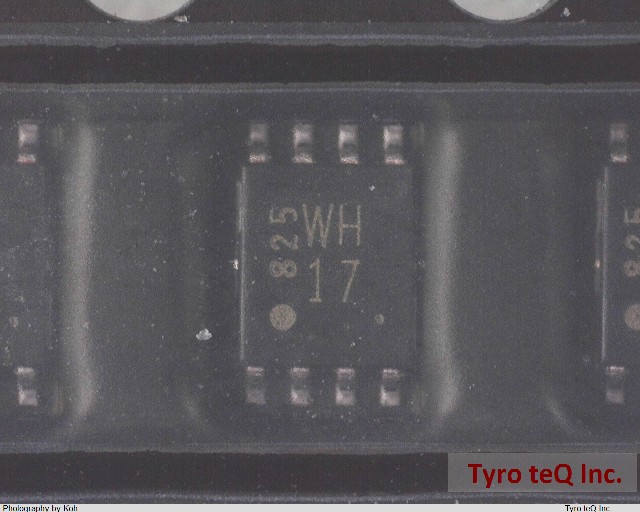

TC7WH17FK データシート

Name: TC7WH17FK
Brand: TOSHIBA
SKU: 300393474-0000-0000-0000

TC7WH17FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7WH17FK の詳細情報

型番	TC7WH17FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用ロジックIC
データシート
Family	LV/LV-A/LVX/H
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G8
Length	2.3 mm
Logic IC Type	BUFFER
Number of Functions	3
Number of Inputs	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	18.5 ns
Screening Level	AEC-Q100
Seated Height-Max	0.9 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	2 mm
tpd_tpz (Typ.)(nsec)	5.5
グループ	TC7WH
ゲート数	3
ピン数	8
機能1	Gate
機能2	Schmitt Buffer
