TC7WH14FK(TE85L)

Name: TC7WH14FK(TE85L)
Brand: TOSHIBA
SKU: 300070579-0000-0000-0000

TC7WH14FK(TE85L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

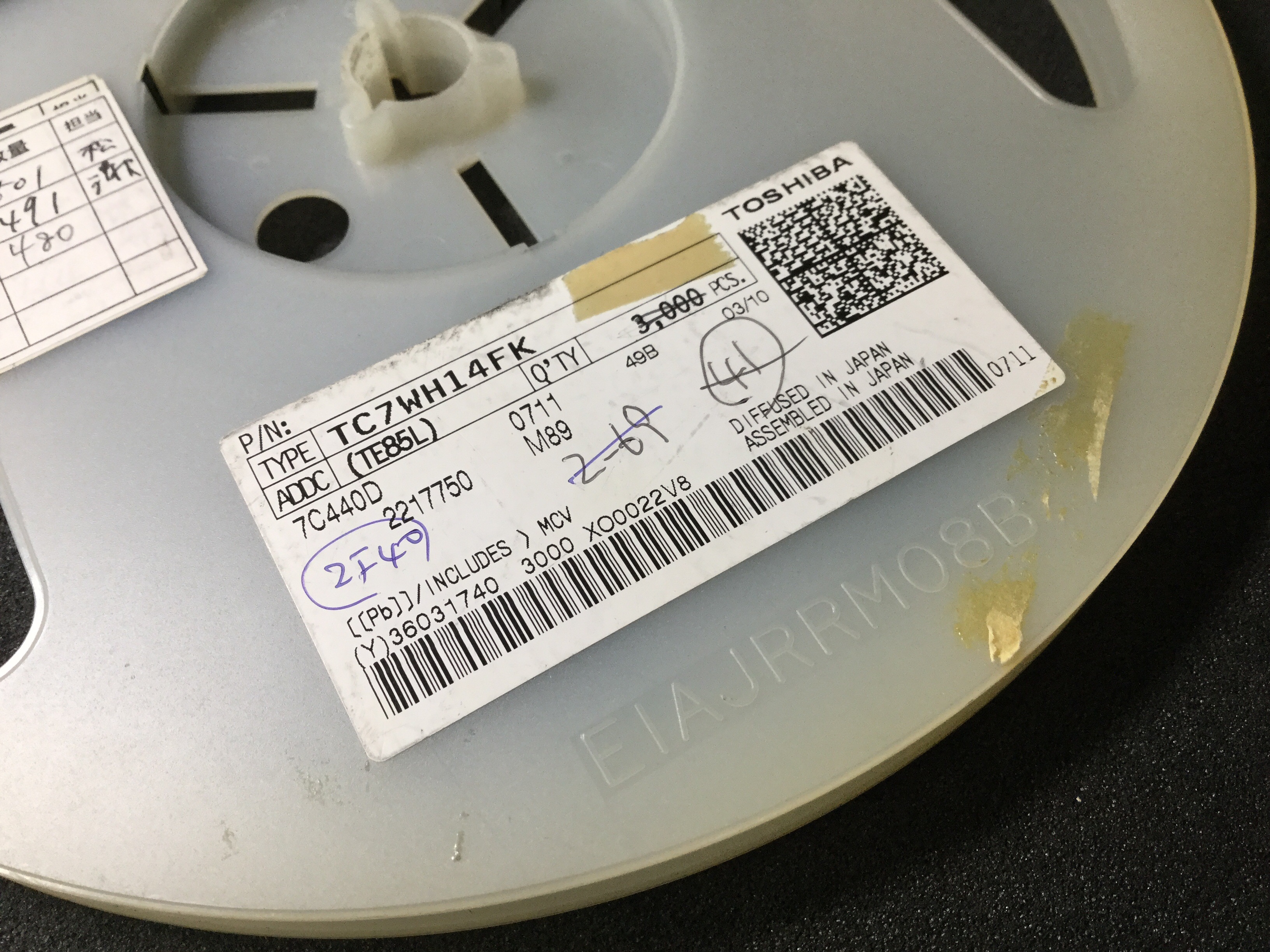

TE85L:4mmピッチテーピング左巻

TC7WH14FK(TE85L) の詳細情報

型番	TC7WH14FK(TE85L)
メーカー	TOSHIBA
種別	汎用ロジックIC
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G8
Length	2.3 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.004 Amp
Number of Functions	3
Number of Inputs	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	18.5 ns
Propagation Delay (tpd)	18.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	0.9 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Width	2 mm
