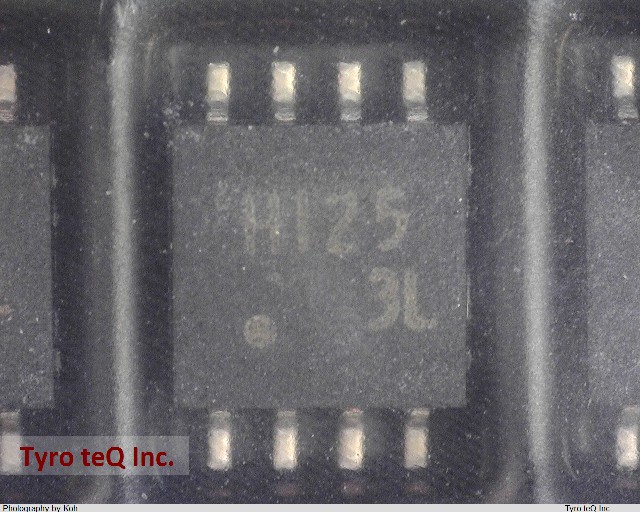

TC7WH125FU データシート

Name: TC7WH125FU
Brand: TOSHIBA
SKU: 300019852-0000-0000-0000

TC7WH125FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7WH125FU の詳細情報

型番	TC7WH125FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用ロジックIC
データシート
Control Type	ENABLE LOW
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.004 Amp
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	13 ns
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	2.8 mm
tpd_tpz (Typ.)(nsec)	3.8
グループ	TC7WH
ゲート数	2
ピン数	8
機能1	Buffer
機能2	3-State Buffer
