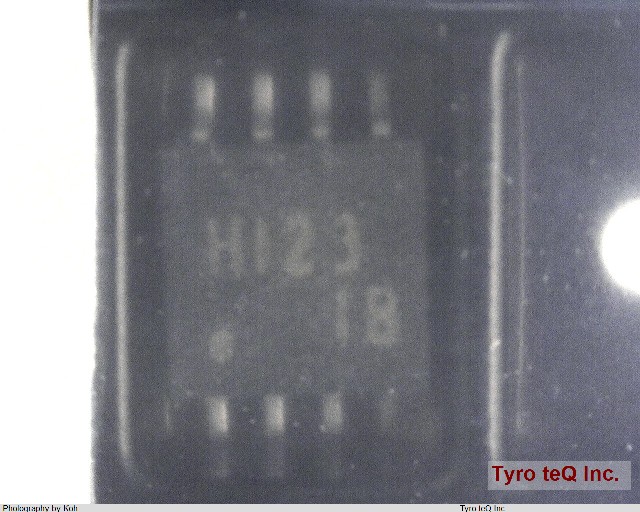

TC7WH123FU-TE12L データシート

Name: TC7WH123FU-TE12L
Brand: TOSHIBA
SKU: 300070571-0000-0000-0000

TC7WH123FU-TE12L - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TC7WH123FU-TE12L の詳細情報

型番	TC7WH123FU-TE12L
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	2
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Power Supplies	2/5.5 V
Propagation Delay (tpd)	27.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	2.8 mm
