TC7W74FU(TE12L) データシート

Name: TC7W74FU(TE12L)
Brand: TOSHIBA
SKU: 300004004-0000-0000-0000

TC7W74FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

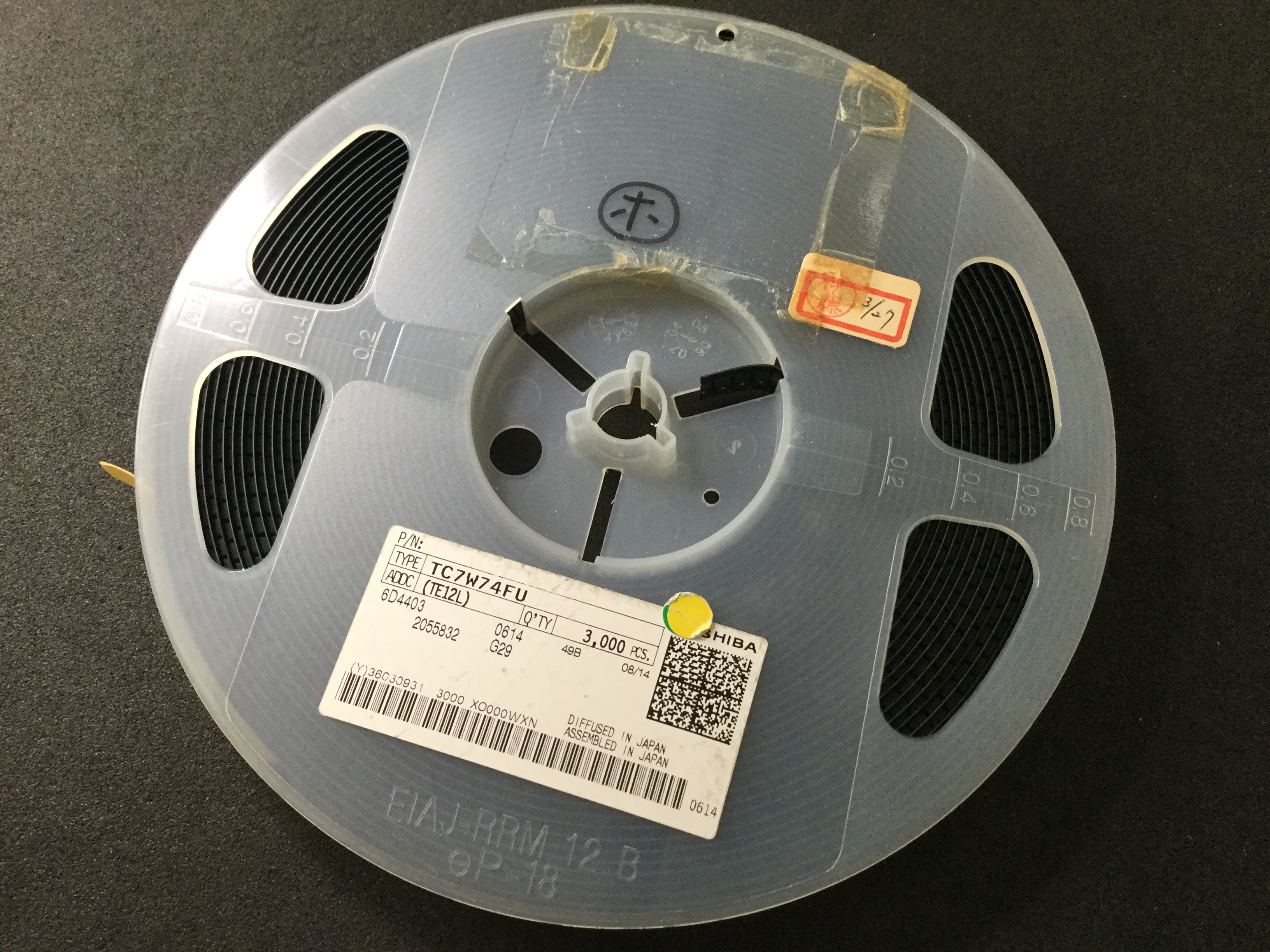

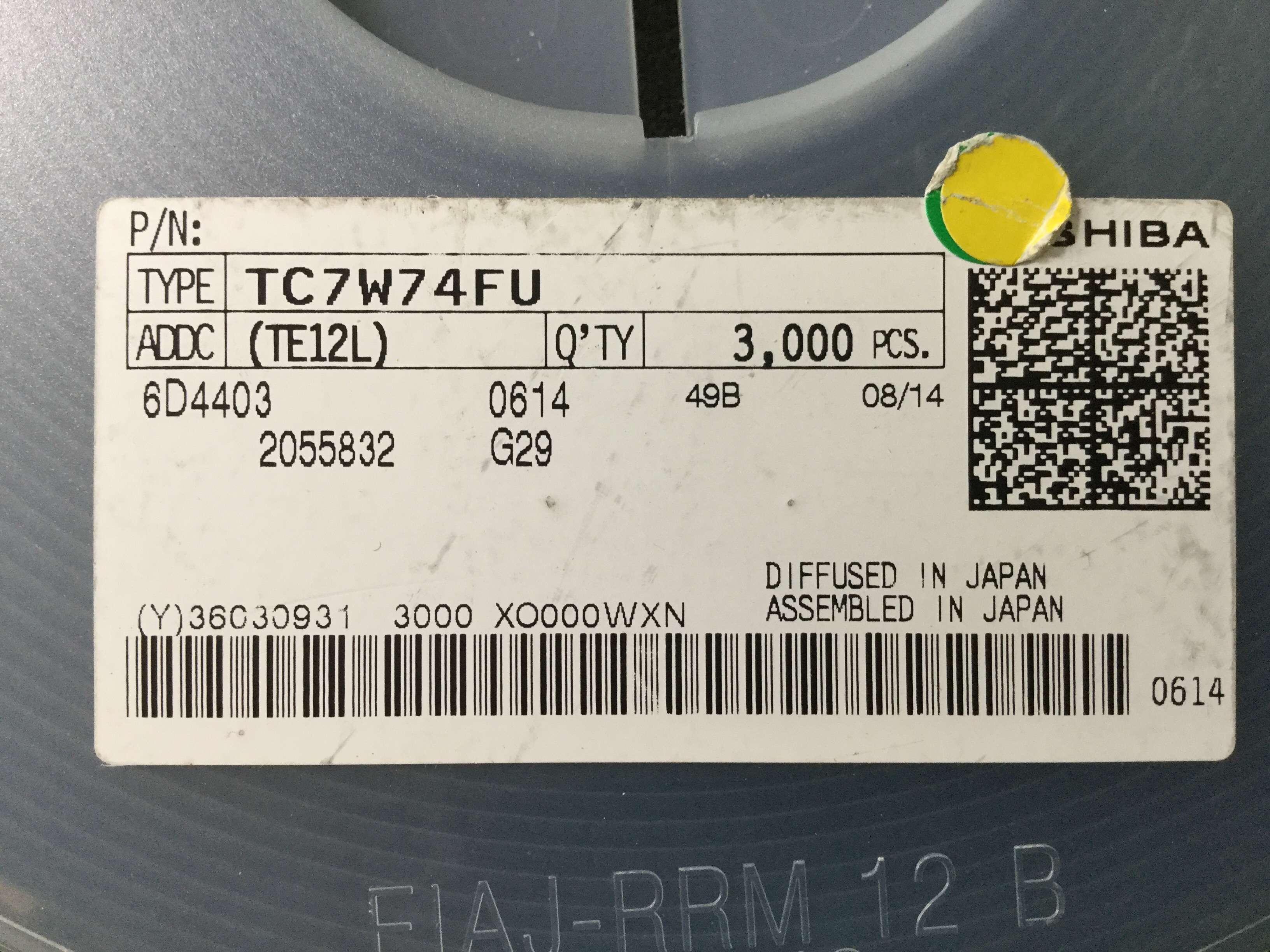

TE12L:12mm幅テーピング

TC7W74FU(TE12L) の詳細情報

型番	TC7W74FU(TE12L)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e2
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	25000000 Hz
Max I(ol)	0.004 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Propagation Delay (tpd)	38 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Silver (Sn/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	2.8 mm
fmax-Min	25 MHz
