TC7W53FU(TE12L) データシート

Name: TC7W53FU(TE12L)
Brand: TOSHIBA
SKU: 300019826-0000-0000-0000

TC7W53FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

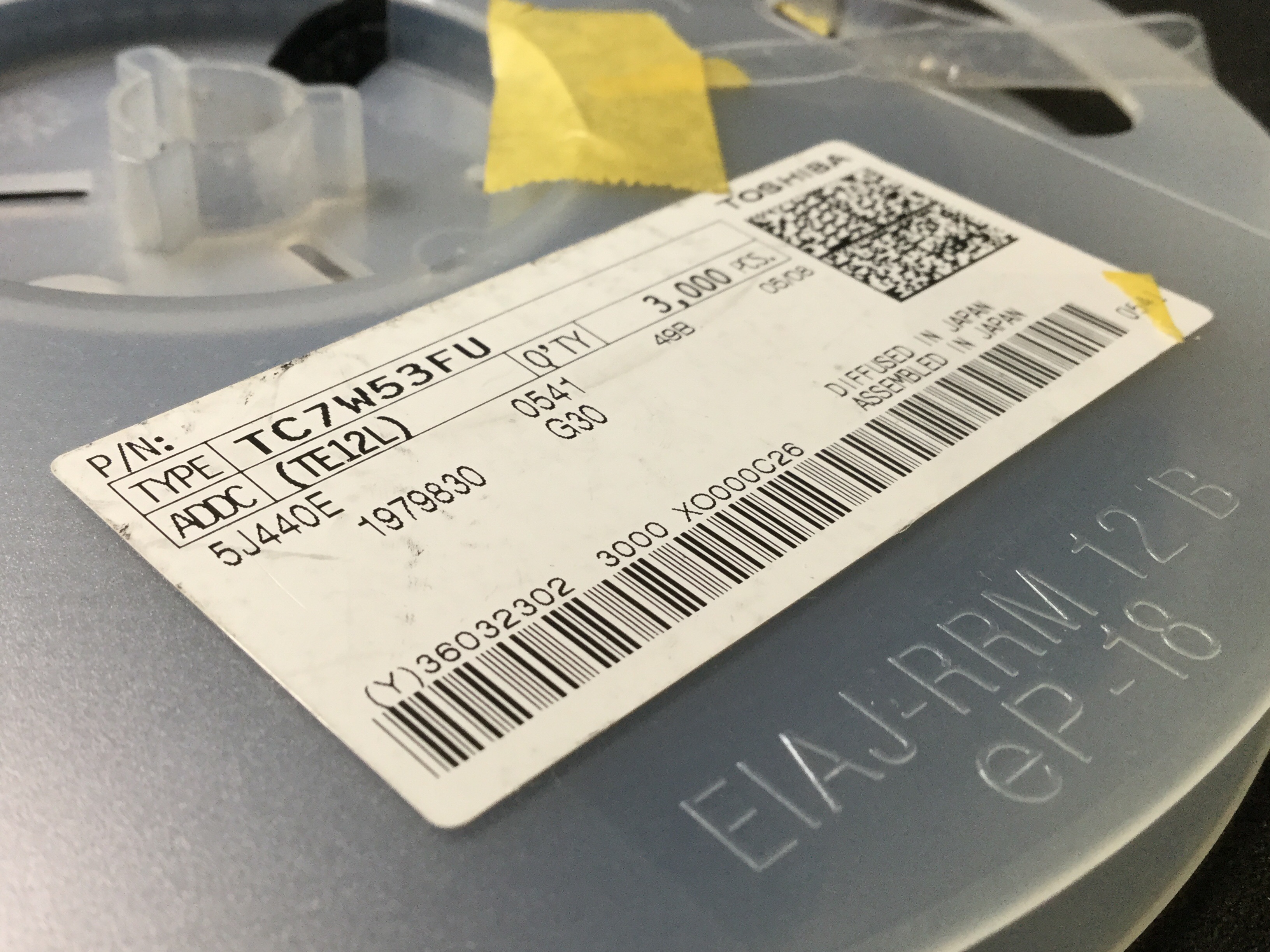

TE12L:12mm幅テーピング

TC7W53FU(TE12L) の詳細情報

型番	TC7W53FU(TE12L)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	2.9 mm
Neg Supply Voltage-Max (Vsup)	0 V
Neg Supply Voltage-Min (Vsup)	-6 V
Neg Supply Voltage-Nom (Vsup)	-4.5 V
Number of Channels	2
Number of Functions	1
Number of Terminals	8
On-state Resistance Match-Nom	35 ohm
On-state Resistance-Max (Ron)	225 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Power Supplies	2/6,GND/-6 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-on Time-Max	60 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	2.8 mm
