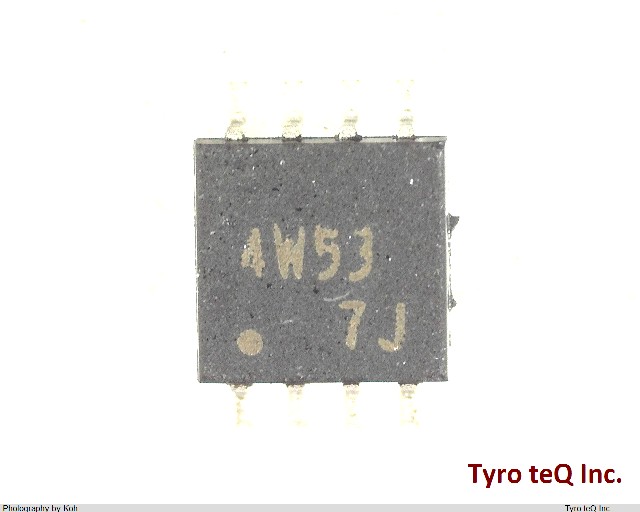

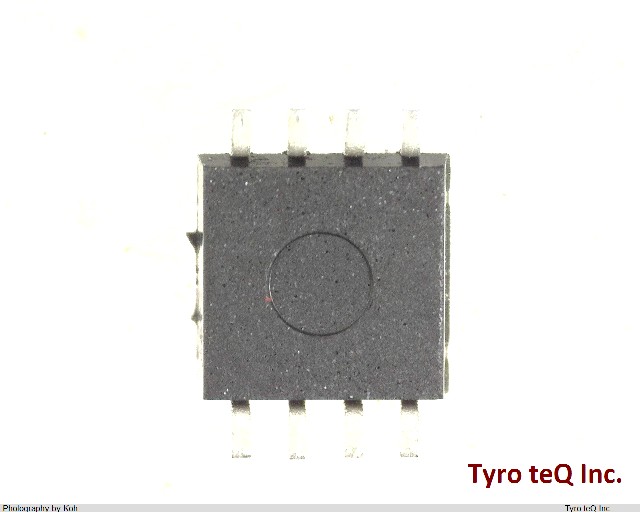

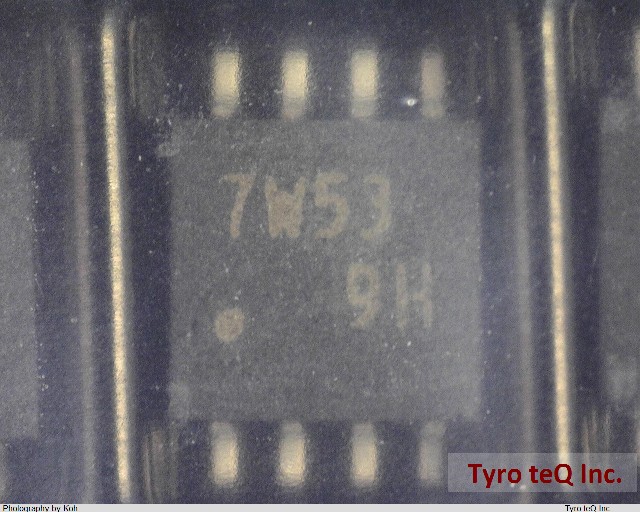

TC7W53FU データシート

Name: TC7W53FU
Brand: TOSHIBA
SKU: 300019825-0000-0000-0000

TC7W53FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7W53FU の詳細情報

型番	TC7W53FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用ロジックIC
データシート
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS
IO (Min)(mA)
Input Voltage-Max	6 V
Input Voltage-Min	0 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	2.9 mm
Neg Supply Voltage-Max (Vsup)	0 V
Neg Supply Voltage-Min (Vsup)	-6 V
Neg Supply Voltage-Nom (Vsup)	-4.5 V
Normal Position	NO V
Number of Channels	2
Number of Functions	1
Number of Terminals	8
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	12 ohm
On-state Resistance-Max (Ron)	120 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6,GND/-6 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-off Time-Max	56 ns
Switch-on Time-Max	56 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	2.8 mm
tpd_tpz (Typ.)(nsec)	4
グループ	TC7W
ゲート数	1
ピン数	8
機能1	Switch / Multiplexer
機能2	SPDT Analog Multiplexer
