TC7W53FK データシート

Name: TC7W53FK
Brand: TOSHIBA
SKU: 300019823-0000-0000-0000

TC7W53FK - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

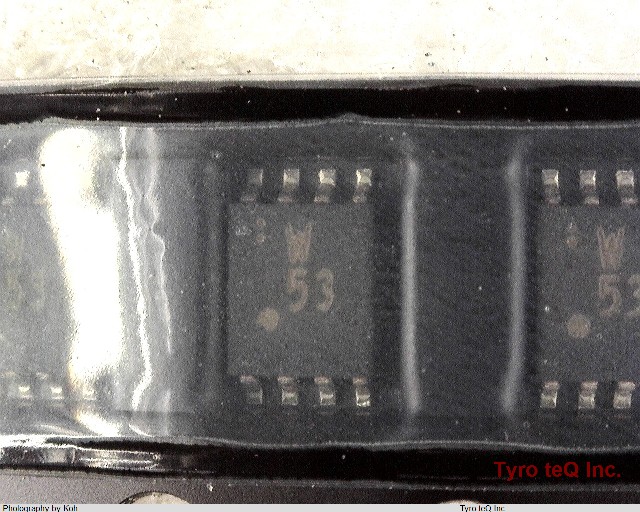

TC7W53FK の詳細情報

型番	TC7W53FK
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	汎用ロジックIC
データシート
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS
IO (Min)(mA)
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	2.3 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	0 V
Neg Supply Voltage-Min (Vsup)	-6 V
Neg Supply Voltage-Nom (Vsup)	-4.5 V
Number of Channels	2
Number of Functions	1
Number of Terminals	8
On-state Resistance Match-Nom	35 ohm
On-state Resistance-Max (Ron)	225 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6,GND/-6 V
Qualification Status	Not Qualified
Seated Height-Max	0.9 mm
Signal Current-Max	0.025 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.08 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Switch-on Time-Max	60 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	2 mm
tpd_tpz (Typ.)(nsec)	4
グループ	TC7W
ゲート数	1
ピン数	8
機能1	Switch / Multiplexer
機能2	SPDT Analog Multiplexer
