TC7W14F(TE12L) データシート

Name: TC7W14F(TE12L)
Brand: TOSHIBA
SKU: 300019813-0000-0000-0000

TC7W14F(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

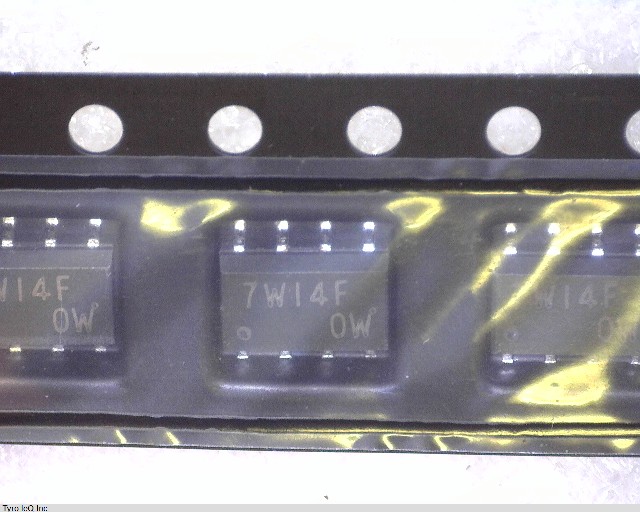

TE12L:12mm幅テーピング

TC7W14F(TE12L) の詳細情報

型番	TC7W14F(TE12L)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G8
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.004 Amp
Number of Functions	3
Number of Inputs	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.19
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	31 ns
Propagation Delay (tpd)	31 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.8 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.1 mm
