TC7W126FU(TE12L,F) データシート

Name: TC7W126FU(TE12L,F)
Brand: TOSHIBA
SKU: 300070546-0000-0000-0000

TC7W126FU(TE12L,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

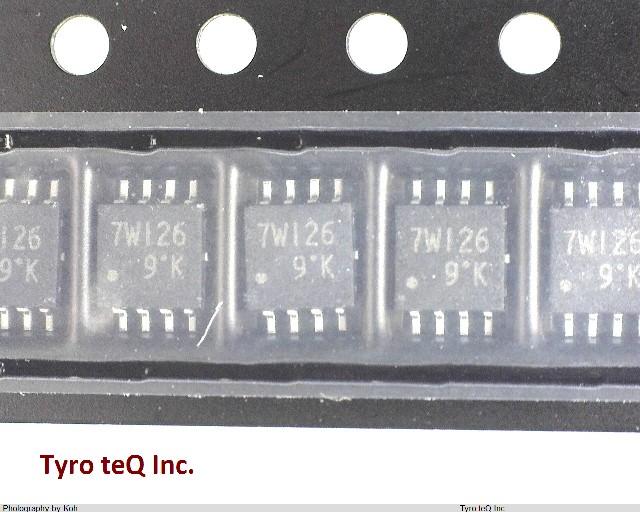

TE12L:12mm幅テーピング F:RoHS品

TC7W126FU(TE12L,F) の詳細情報

型番	TC7W126FU(TE12L,F)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Control Type	ENABLE HIGH
Family	HC/UH
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e2
Length	2.9 mm
Logic IC Type	BUS DRIVER
Max I(ol)	0.006 Amp
Number of Bits	1
Number of Functions	2
Number of Ports	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	23 ns
Propagation Delay (tpd)	165 ns
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Silver (Sn/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.8 mm
