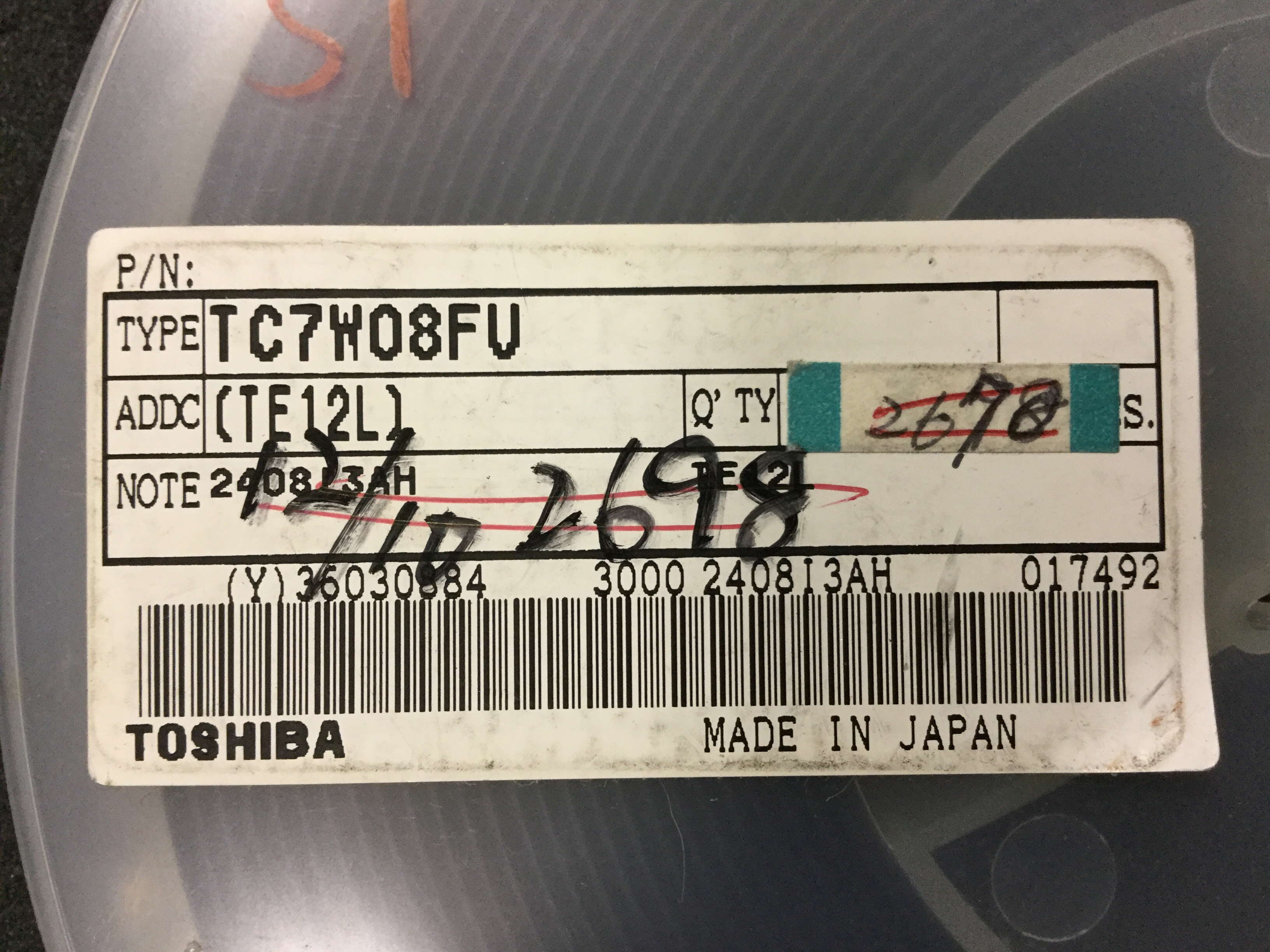

TC7W08FU(TE12L) データシート

Name: TC7W08FU(TE12L)
Brand: TOSHIBA
SKU: 300000712-0000-0000-0000

TC7W08FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TE12L:12mm幅テーピング

TC7W08FU(TE12L) の詳細情報

型番	TC7W08FU(TE12L)
メーカー	TOSHIBA
種別	汎用ロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	0.004 Amp
Number of Functions	2
Number of Inputs	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP8,.13
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Power Supply Current-Max (ICC)	0.01 mA
Prop. Delay@Nom-Sup	95 ns
Propagation Delay (tpd)	19 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.3 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.8 mm
