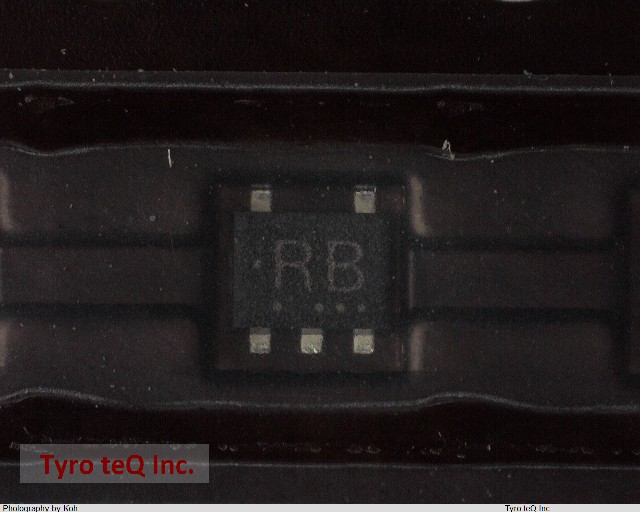

TC7SZ125AFE データシート

Name: TC7SZ125AFE
Brand: TOSHIBA
SKU: 300241408-0000-0000-0000

TC7SZ125AFE - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7SZ125AFE の詳細情報

型番	TC7SZ125AFE
メーカー	TOSHIBA
種別	L-MOSワンゲートロジック
データシート
Control Type	ENABLE LOW
Family	HC/UH
JESD-30 Code	R-PDSO-F5
JESD-609 Code	e0
Length	1.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Number of Bits	1
Number of Functions	1
Number of Ports	2
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VSOF
Package Equivalence Code	FL6,.047,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE Meter
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	6 ns
Propagation Delay (tpd)	11.5 ns
Qualification Status	Not Qualified
Seated Height-Max	0.6 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.8 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	FLAT
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Width	1.2 mm
