TC7SH08FU データシート

Name: TC7SH08FU
Brand: TOSHIBA
SKU: 300000381-0000-0000-0000

TC7SH08FU - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

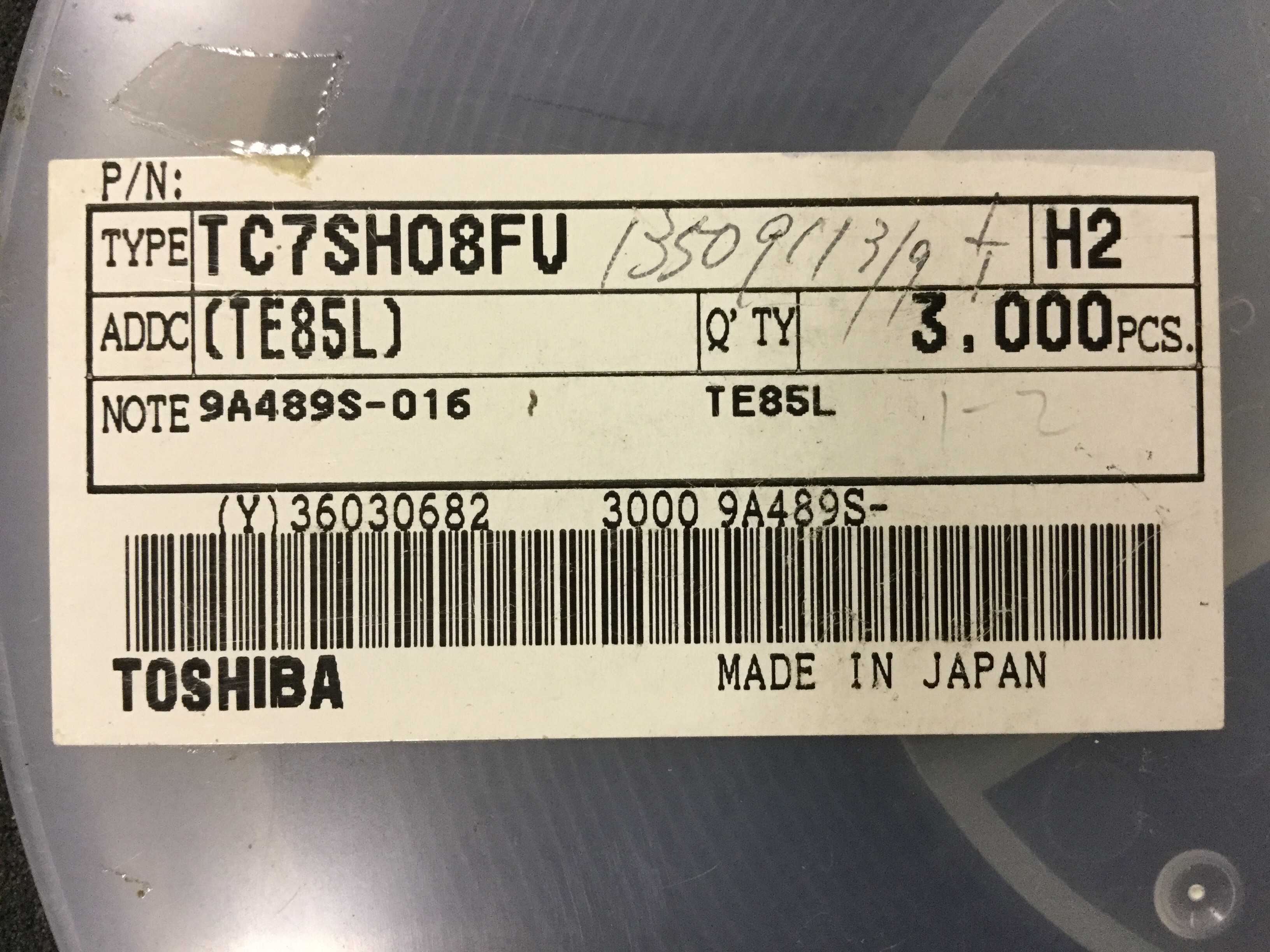

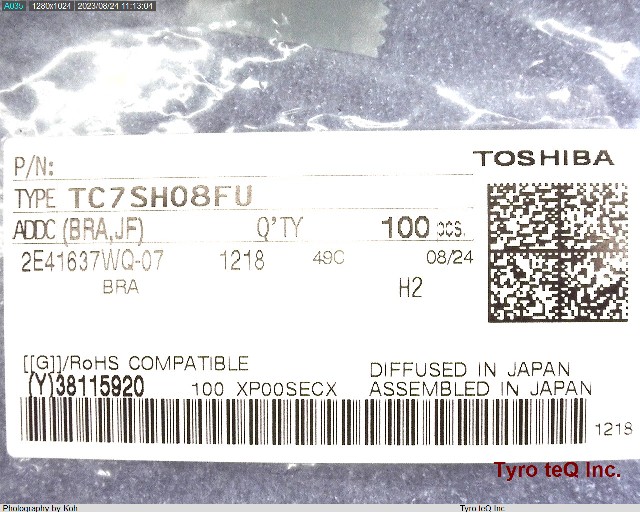

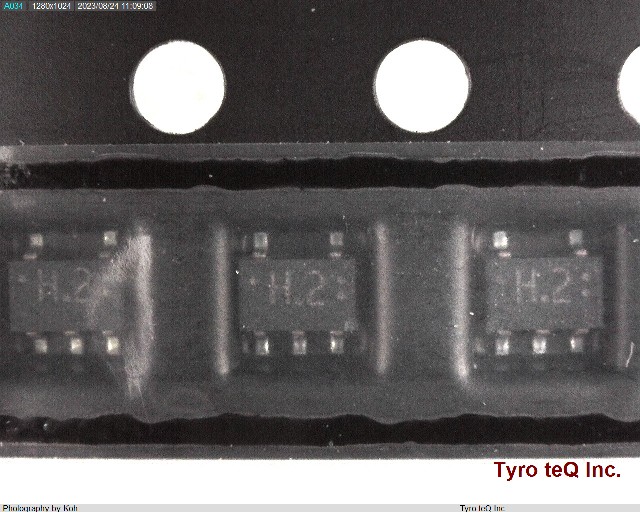

TC7SH08FU の詳細情報

型番	TC7SH08FU
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	L-MOSワンゲートロジック
データシート
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	8
JESD-30 Code	R-PDSO-G5
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	5.0E-5 Amp
Number of Functions	1
Number of Inputs	2
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/5.5 V
Prop. Delay@Nom-Sup	14 ns
Propagation Delay (tpd)	9 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Screening Level	AEC-Q100
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	1.25 mm
tpd_tpz (Typ.)(nsec)	4.3
グループ	TC7SH
ゲート数	1
ピン数	5
機能1	Gate
機能2	AND
