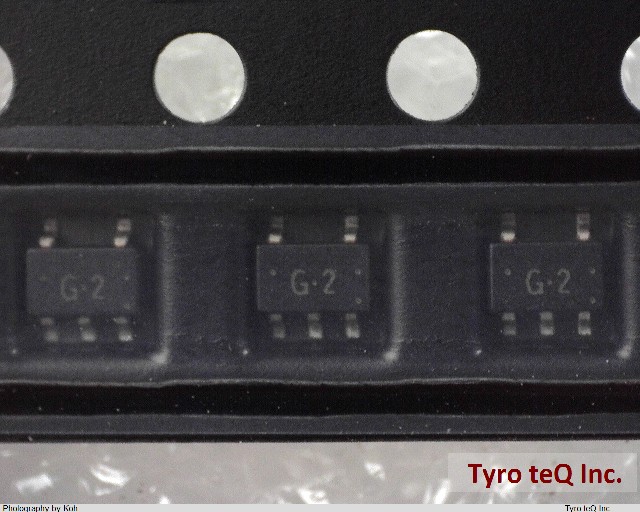

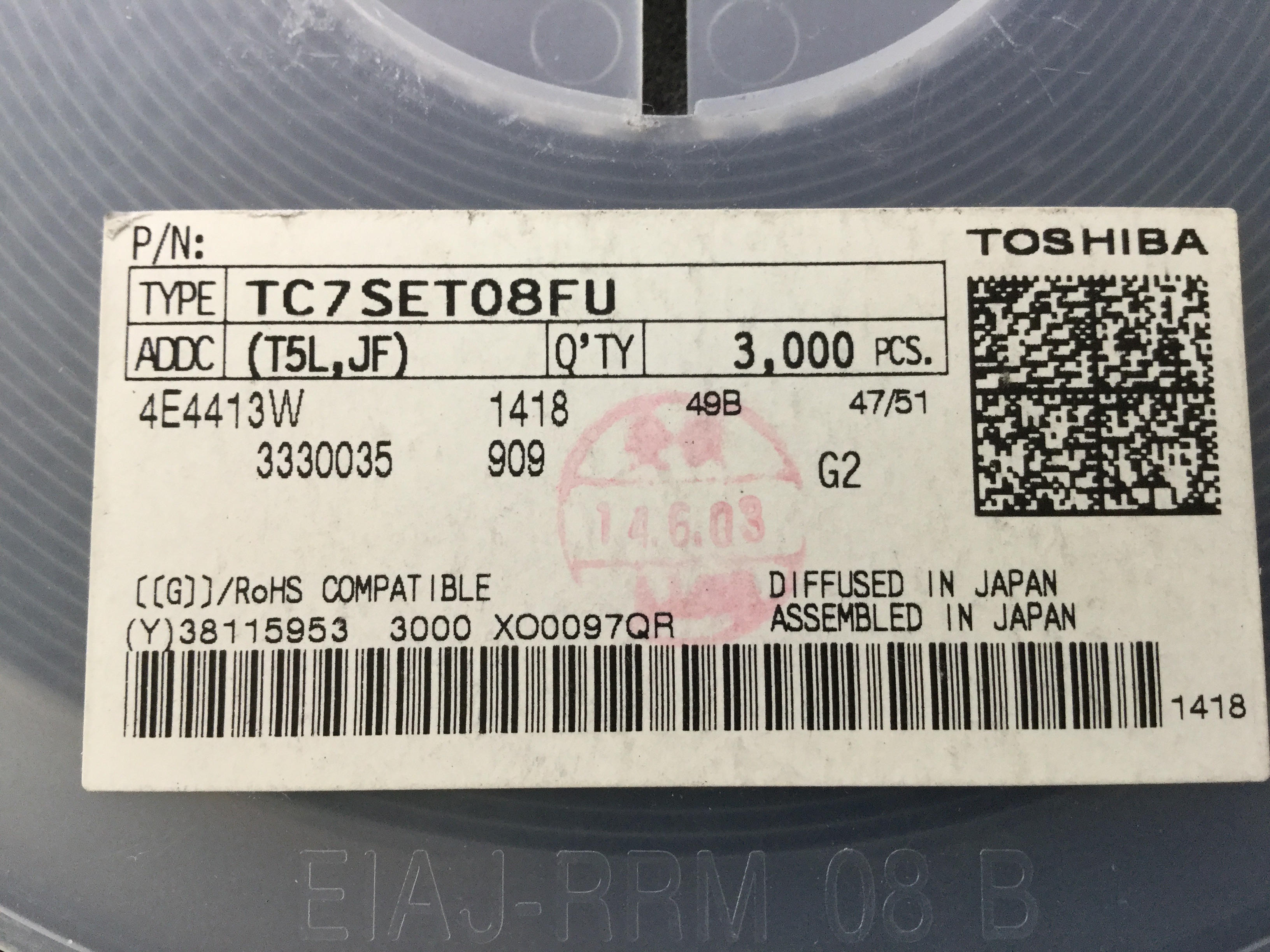

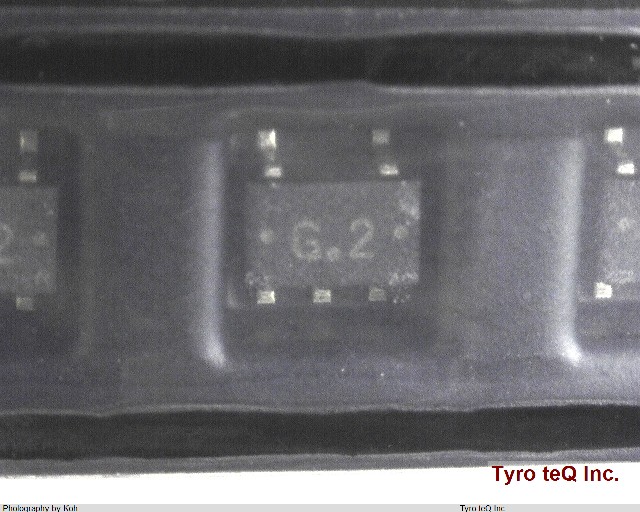

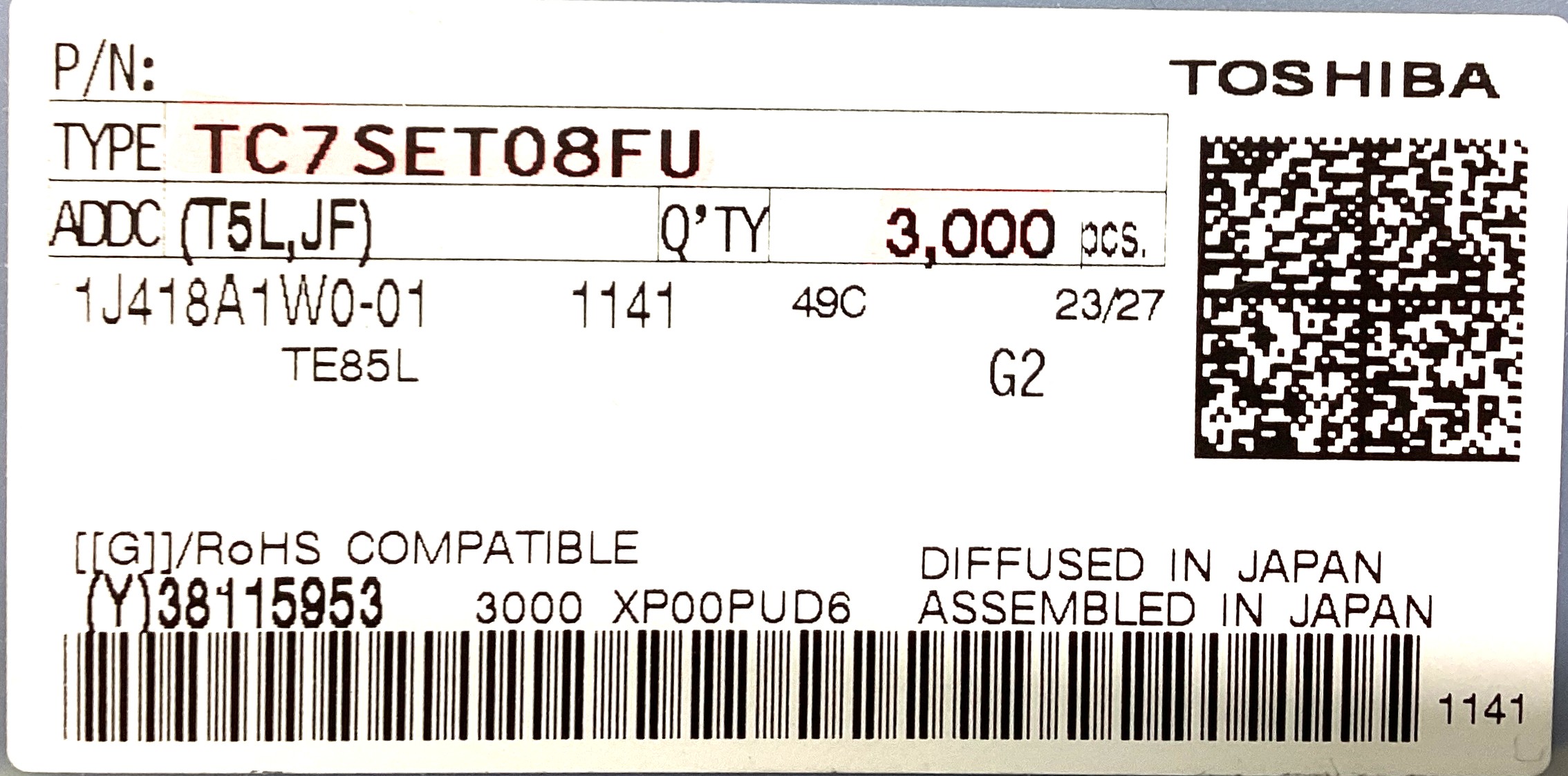

TC7SET08FU(T5L,JF) データシート

Name: TC7SET08FU(T5L,JF)
Brand: TOSHIBA
SKU: 300223048-0000-0000-0000

TC7SET08FU(T5L,JF) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC7SET08FU(T5L,JF) の詳細情報

型番	TC7SET08FU(T5L,JF)
メーカー	TOSHIBA
種別	L-MOSワンゲートロジック
データシート
Family	AHCT/VHCT/VT
JESD-30 Code	R-PDSO-G5
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	0.008 Amp
Number of Functions	1
Number of Inputs	2
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	5 V
Prop. Delay@Nom-Sup	10.3 ns
Propagation Delay (tpd)	10.3 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	1.25 mm
